01. Getting Started

What you will learn

  • Install and import toolsrtm.

  • Run the simplest scientifically meaningful RTM simulation: a leaf model feeding a canopy model.

  • Plot the result.

  • Understand exactly what the returned objects contain.

Concept

Every simulation on this site follows the same two-step shape: a leaf model turns leaf traits (pigments, water, dry matter) into a reflectance/transmittance spectrum, and a canopy model turns that leaf spectrum plus canopy structure (leaf area, leaf angle, viewing geometry) into a top-of-canopy (TOC) reflectance spectrum – what a sensor above the canopy would see. This chapter runs that chain once, end to end, with prospect_d() (PROSPECT-D) and foursail() (fourSAIL) – the two most widely used models in the package, and the baseline every later chapter builds on.

Python tools used

Function

What it does

prospect_d()

Leaf reflectance/transmittance from pigment/water/dry-matter traits. Returns a LeafOptics object with lambda_ (wavelength, nm), refl, tran – each a 2101-element array, 400-2500nm at 1nm steps.

foursail()

Canopy top-of-canopy BRDF from leaf optics + canopy structure + soil background. Takes a trait dict, a soil reflectance array, and leaf_model (which leaf model to run internally). Returns an object whose rsot field is the TOC bidirectional reflectance factor, same 2101-element wavelength grid.

Run the example

import numpy as np
from toolsrtm import prospect_d, foursail

# 1. Leaf optics: pigments, water, dry matter, leaf structure
leaf = prospect_d(N=1.5, Cab=40, Car=8, Anth=1, Cbrown=0, EWT=0.01, LMA=0.009, alpha=40)
print(leaf.refl.shape, leaf.refl[150])   # reflectance at 550nm

# 2. Canopy: same leaf traits + structure + geometry + soil background
inputLUT = dict(
    N=1.5, Cab=40, Car=8, Anth=1, Cbrown=0, EWT=0.01, LMA=0.009, alpha=40,
    LIDFa=-0.35, LIDFb=-0.15, TypeLidf=1,   # leaf angle distribution (spherical)
    LAI=3, hspot=0.01, tts=30, tto=0, psi=0,  # leaf area, hot-spot, sun/view geometry
)
rsoil = np.full(2101, 0.15)   # flat soil background, 400-2500nm
sail = foursail(inputLUT, rsoil, leaf_model="PROSPECT-D", spectrum_all=True)
print(sail.rsot.shape, sail.rsot[150])   # TOC reflectance at 550nm

import matplotlib.pyplot as plt
wl = np.arange(400, 2501)
plt.plot(wl, sail.rsot)
plt.xlabel("Wavelength (nm)"); plt.ylabel("TOC reflectance")
plt.title("Your first simulation: PROSPECT-D leaf -> fourSAIL canopy")

Result

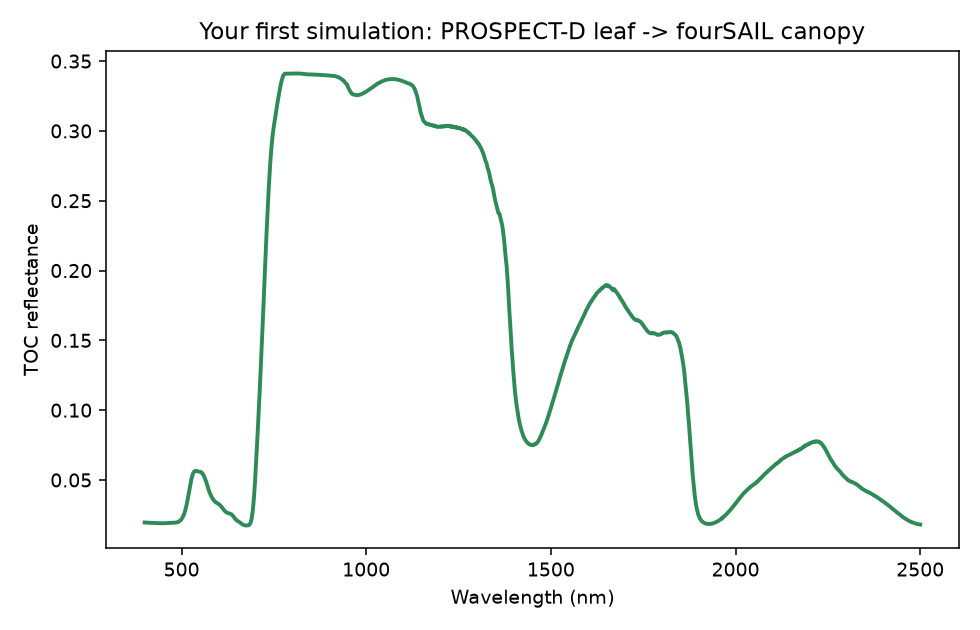

Top-of-canopy reflectance spectrum from PROSPECT-D + fourSAIL, real output of the code above

Real output of the code above.

Printed output (your own run will match exactly – both calls are deterministic, no random seed involved):

(2101,) 0.13359835005159199   # leaf.refl[150], leaf reflectance at 550nm
(2101,) 0.05584955522593193   # sail.rsot[150], TOC reflectance at 550nm

Interpretation

The curve has the classic vegetation shape: low reflectance in the visible (400-700nm, chlorophyll absorption, with a small local “green peak” around 550nm – exactly where we just sampled), a sharp rise at the “red edge” (~700-750nm), a high, fairly flat NIR plateau (750-1300nm, multiple scattering between leaf layers – the reason healthy vegetation looks so bright in the near-infrared), and two SWIR water-absorption dips (~1450nm, ~1940nm).

The leaf-level (0.134) and canopy-level (0.056) values at 550nm are not close, and that gap is itself informative: the green peak is a sharp, narrow leaf-level feature, and at a canopy scale it gets diluted by everything a single leaf spectrum doesn’t capture – the soil background showing through gaps between leaves, shading between leaf layers, and the sun/view geometry (tts=30, tto=0) all pull the canopy-level value down from the pure single-leaf value. A leaf spectrum is not a scaled-down canopy spectrum; that’s exactly why a separate canopy model exists. Chapter 04 makes the soil/LAI side of that gap an explicit experiment.

Try it yourself

  • Set rsoil to a much darker (0.03) or brighter (0.30) flat value and see how much the visible/SWIR bands shift.

  • Change Cab from 40 to 10 (stressed/senescent) or 70 (very healthy) and watch the visible/red-edge region respond.

  • Set LAI to 0.3 (sparse canopy) and compare against the LAI=3 result – the canopy value should move much closer to the bare-soil value.

Common mistakes

  • rsoil must be a 2101-element array (400-2500nm, 1nm step) matching the leaf/canopy wavelength grid – a scalar or wrong-length array will error or silently broadcast incorrectly.

  • leaf_model="PROSPECT-D" inside foursail() re-runs the leaf model internally from the same inputLUT dict – the separate prospect_d() call above is only there to show the leaf-level step explicitly; foursail() alone is enough for a normal simulation.

  • Angles (tts, tto, psi, and LIDFa under TypeLidf=2) are in degrees, not radians.

Next

02. Parameters & Traits – what every trait above (N, Cab, LIDFa, …) actually means, its unit, and its realistic range.

Using R? -> ToolsRTM Tutorial 01: Getting Started
