19. FLEX Cal/Val: ESU Heterogeneity Mapping and Trait Retrieval at FLEX Scale

t19-flex-esu-heterogeneity.Rmd

ESA’s FLEX mission (launch expected 2026) measures solar-induced chlorophyll fluorescence (SIF) at a native ground pixel of roughly 300 m – large enough that a single FLEX pixel routinely covers a mix of forest, understory gaps, clearings, and non-vegetated surfaces. Cal/Val campaigns need to know, before committing ground Elementary Sampling Units (ESUs) to a site, how heterogeneous each candidate 300 m pixel actually is: a homogeneous pixel needs only a handful of ESUs to characterize; a heterogeneous one needs many more, spread out to capture the real within-pixel variability.

This tutorial builds that heterogeneity map from a real Sentinel-2 image (10 m, ~30x finer than FLEX) over the same Loobos (NL-Loo) ICOS/FLUXNET forest site used in Tutorial 17 – then goes one step further than a spectral-index heterogeneity map alone: it retrieves Cab, LAI, and Car via hybrid inversion at native 10 m resolution and aggregates those physically-meaningful trait maps to FLEX scale too, so heterogeneity can be read directly in trait units, not just an index.

Sentinel-2 (STAC, 10m) -> SCL vegetation mask -> NDVI/S2REP (getSpatial_index) + NDRE
        |
        v
Aggregate 10m -> 300m (FLEX native scale)
        |
        +--> within-300m SD -> Cochran ESU sample size -> homogeneous/heterogeneous map
        |
        +--> RF-inverted Cab/LAI/Car (10m) -> aggregated to 300m -> trait heterogeneity map

1. Site and a real Sentinel-2 pull via STAC

Same site as Tutorial 17 (the Loobos ICOS tower), but a wider buffer here (1.5 km) so the FLEX-scale grid below actually contains multiple 300 m pixels to compare, not just one:

pt <- st_point(c(5.74355, 52.166447)) |> st_sfc(crs = 4326)
scenario <- st_as_sf(data.frame(id = 1), geometry = pt)
bbox <- get_bounding_box(scenario, 1500)
shape <- st_as_sf(data.frame(id = 1), geometry = st_sfc(st_polygon(list(rbind(
  c(bbox["xmin"], bbox["ymin"]), c(bbox["xmin"], bbox["ymax"]),
  c(bbox["xmax"], bbox["ymax"]), c(bbox["xmax"], bbox["ymin"]),
  c(bbox["xmin"], bbox["ymin"])))), crs = 4326))
real_names <- c("B02","B03","B04","B05","B06","B07","B08","B8A","B11","B12")

sc <- get.satellite_collection(scenario = scenario, collection = "sentinel-2-l2a",
                                cloud_server = "microsoft", n.limit = 20,
                                date_range = c("2024-06-01","2024-08-31"),
                                cloud_threshold = 20, buffer_size = 1500)
#> [1] 20
#> Images found: 20
#> [1] "Asset names:"
#>  [1] "AOT"                "B01"                "B02"
#>  [4] "B03"                "B04"                "B05"
#>  [7] "B06"                "B07"                "B08"
#> [10] "B09"                "B11"                "B12"
#> [13] "B8A"                "SCL"                "WVP"
#> [16] "visual"             "safe-manifest"      "granule-metadata"
#> [19] "inspire-metadata"   "product-metadata"   "datastrip-metadata"
#> [22] "tilejson"           "rendered_preview"
cube <- get.sentinel2_cube(sc[[1]], shape = shape,
                            date_range = c("2024-06-01","2024-08-31"),
                            aggregation_method = "mean", get.dataset = FALSE)
#> [1] "The reflectance are processing ---"
#>  [1] "B02" "B03" "B04" "B05" "B06" "B07" "B08" "B8A" "B11" "B12" "SCL"
refl10 <- cube[[real_names]] / 10000
cat("Real Sentinel-2 pull:", nrow(refl10), "x", ncol(refl10), "pixels at 10m\n")
#> Real Sentinel-2 pull: 161 x 161 pixels at 10m

2. Vegetation mask and spectral indices at native resolution

get.sentinel2_cube() already applies Sentinel-2’s own SCL cloud/shadow/snow mask internally (Tutorial 15). NDVI separates vegetated from non-vegetated pixels within the buffer – roads, clearings, water. Computed two ways here, deliberately: a direct formula, and independently via the real package function getSpatial_index() (which expects the standard 12-band Sentinel-2 layout, so the two missing 60m-only bands this pipeline doesn’t retrieve – B01, B09 – are padded with NA first; they aren’t used by the NDVI calculation itself):

ndvi10 <- (refl10[["B08"]] - refl10[["B04"]]) / (refl10[["B08"]] + refl10[["B04"]])
names(ndvi10) <- "NDVI"
veg_mask <- ndvi10 > 0.5

# Cross-check against getSpatial_index(), the real package function
b01_na <- b09_na <- refl10[["B02"]]; terra::values(b01_na) <- NA; terra::values(b09_na) <- NA
r12 <- c(b01_na, refl10[["B02"]], refl10[["B03"]], refl10[["B04"]], refl10[["B05"]],
         refl10[["B06"]], refl10[["B07"]], refl10[["B08"]], refl10[["B8A"]], b09_na,
         refl10[["B11"]], refl10[["B12"]])
names(r12) <- c("B01","B02","B03","B04","B05","B06","B07","B08","B8A","B09","B11","B12")
tmp12 <- tempfile(fileext = ".tif")
terra::writeRaster(r12 * 10000, tmp12, overwrite = TRUE)  # getSpatial_index expects raw DN, applies its own factorR
ndvi_pkg <- getSpatial_index(rasterFiles = tmp12, Sensor = "Sentinel2a", SpectraltoCompute = "NDVI", factorR = 1/10000)[[1]]
max_diff <- max(abs(terra::values(ndvi10) - terra::values(ndvi_pkg)), na.rm = TRUE)
cat("Max abs diff, hand-computed NDVI vs. getSpatial_index():", max_diff, "\n")
#> Max abs diff, hand-computed NDVI vs. getSpatial_index(): 3.695741e-08

ndre10 <- (refl10[["B8A"]] - refl10[["B05"]]) / (refl10[["B8A"]] + refl10[["B05"]])
names(ndre10) <- "NDRE"
ndre_veg <- terra::mask(ndre10, veg_mask, maskvalue = FALSE)

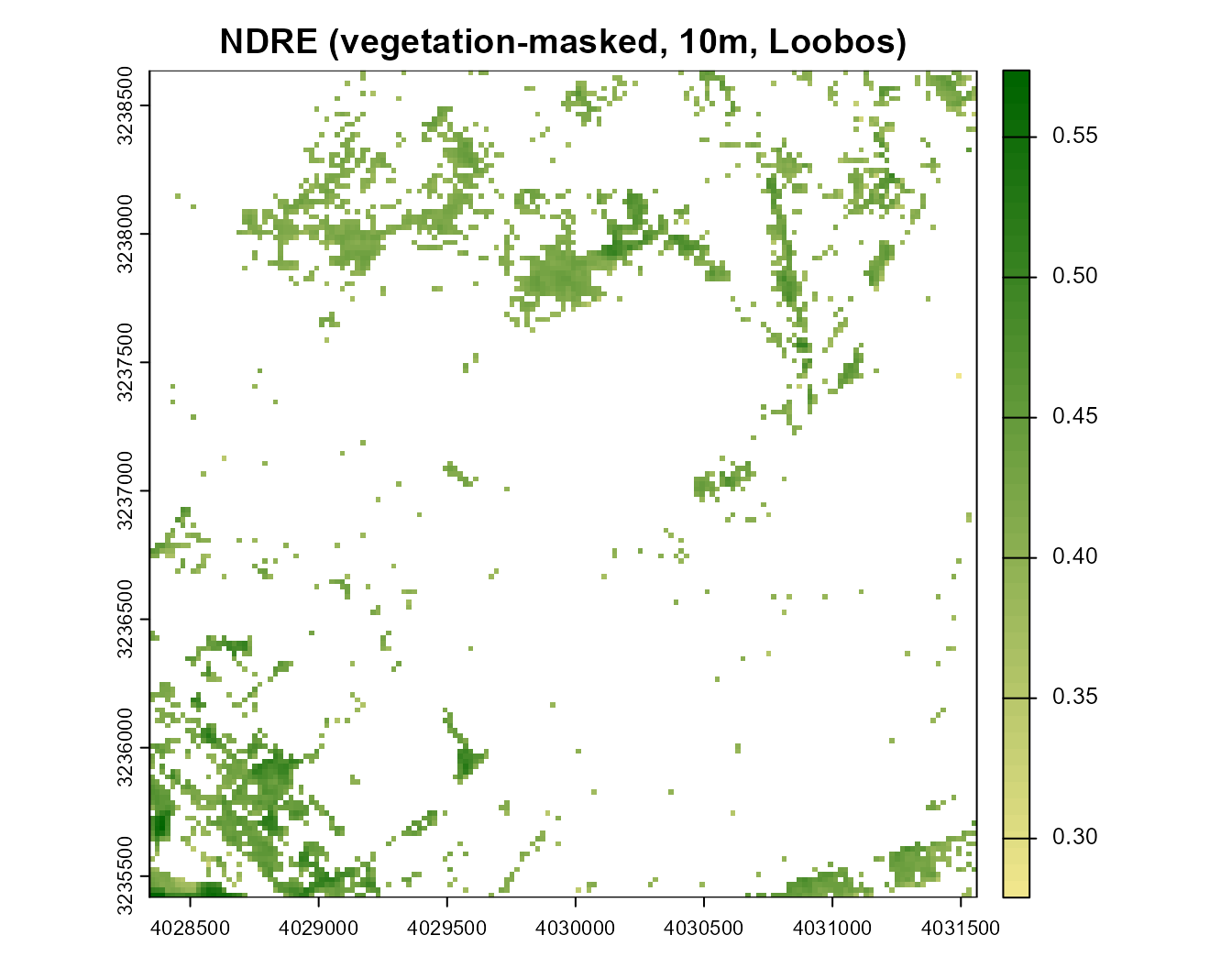

plot(ndre_veg, main = "NDRE (vegetation-masked, 10m, Loobos)", col = colorRampPalette(c("khaki","darkgreen"))(50))

3. Aggregate to FLEX’s native 300 m scale

Sentinel-2’s 10 m grid aggregates to 300 m with a factor-30 mean/SD – the mean is the FLEX-equivalent pixel value a coarse sensor would see; the SD is exactly the within-pixel heterogeneity a coarse sensor cannot see, which is the whole Cal/Val problem this page is about:

ndre_300_mean <- terra::aggregate(ndre_veg, fact = 30, fun = "mean", na.rm = TRUE)
ndre_300_sd   <- terra::aggregate(ndre_veg, fact = 30, fun = "sd", na.rm = TRUE)

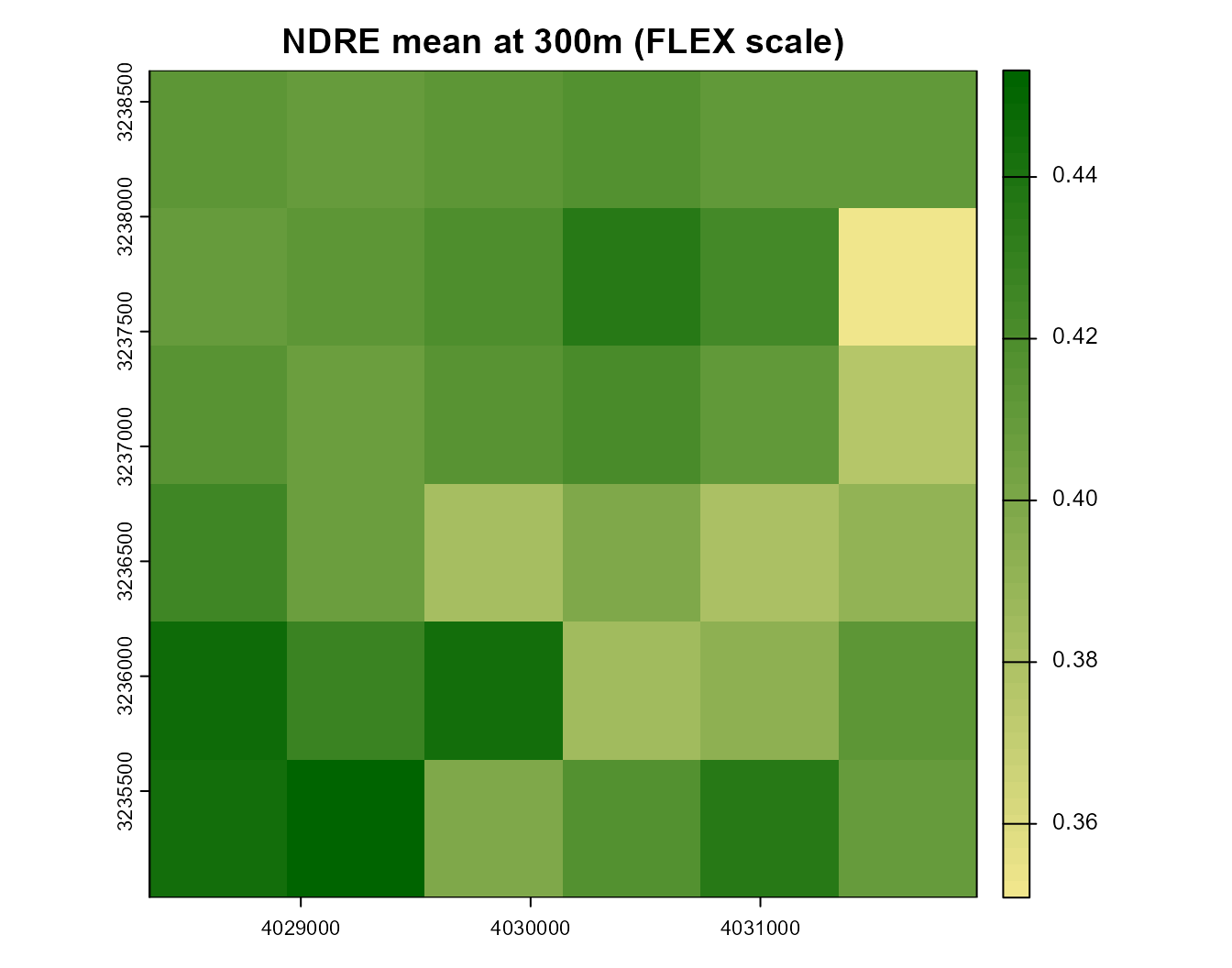

plot(ndre_300_mean, main = "NDRE mean at 300m (FLEX scale)", col = colorRampPalette(c("khaki","darkgreen"))(50))

plot(ndre_300_sd, main = "NDRE within-pixel SD at 300m", col = colorRampPalette(c("white","firebrick"))(50))

4. Cochran sample size: how many ESUs does each FLEX pixel need?

n = (Z * sigma / E)^2 – the classic sample-size formula for estimating a mean to within an absolute tolerance E, at confidence Z (1.96 for 95%), given the population SD sigma. Here sigma is each 300 m pixel’s own real within-pixel NDRE SD from Section 3 – a pixel with more internal variability genuinely needs more ESUs to characterize to the same precision:

Z <- 1.96
E_abs <- 0.05
n_per_flex <- ceiling((Z * ndre_300_sd / E_abs)^2)
n_per_flex[is.infinite(n_per_flex)] <- NA

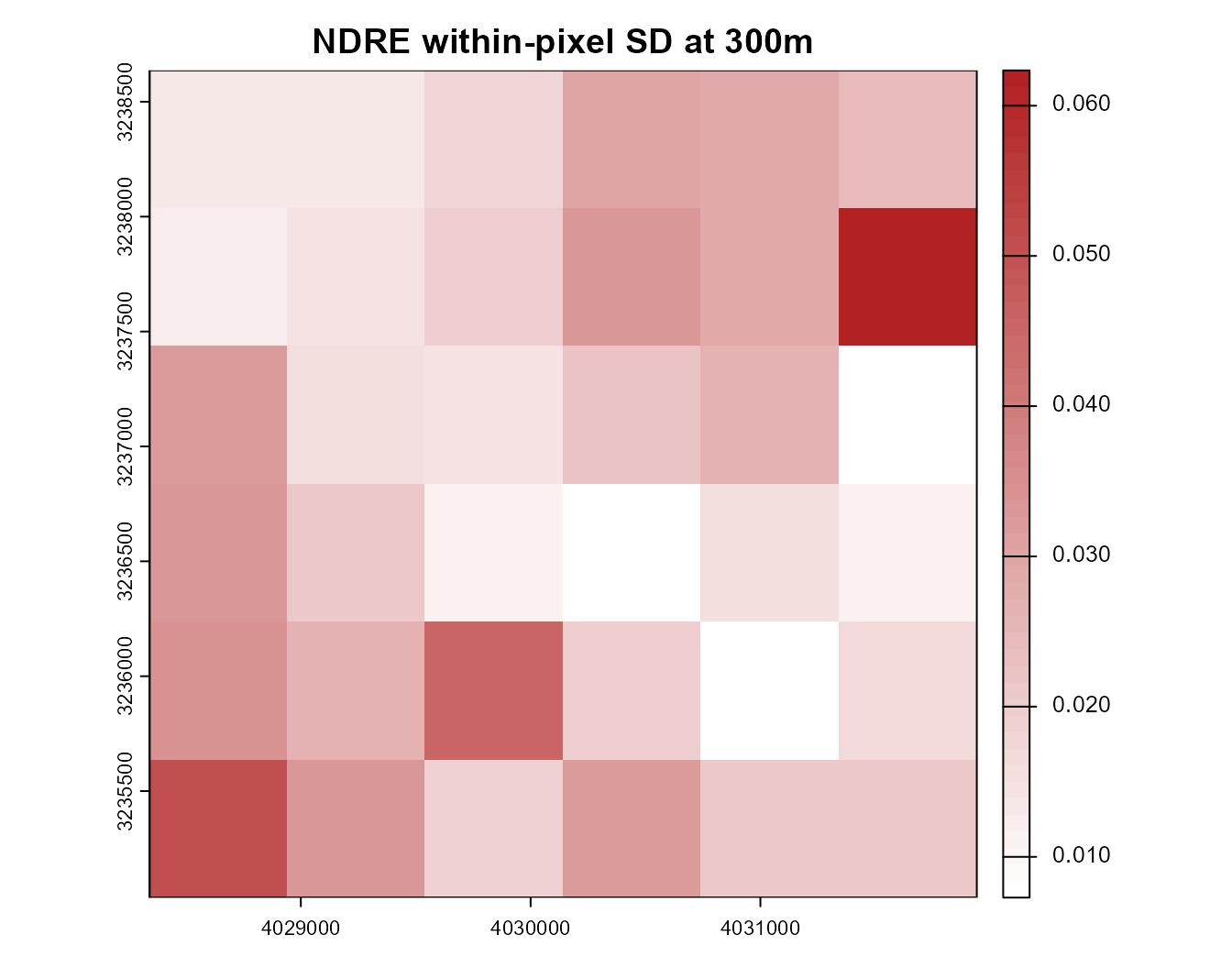

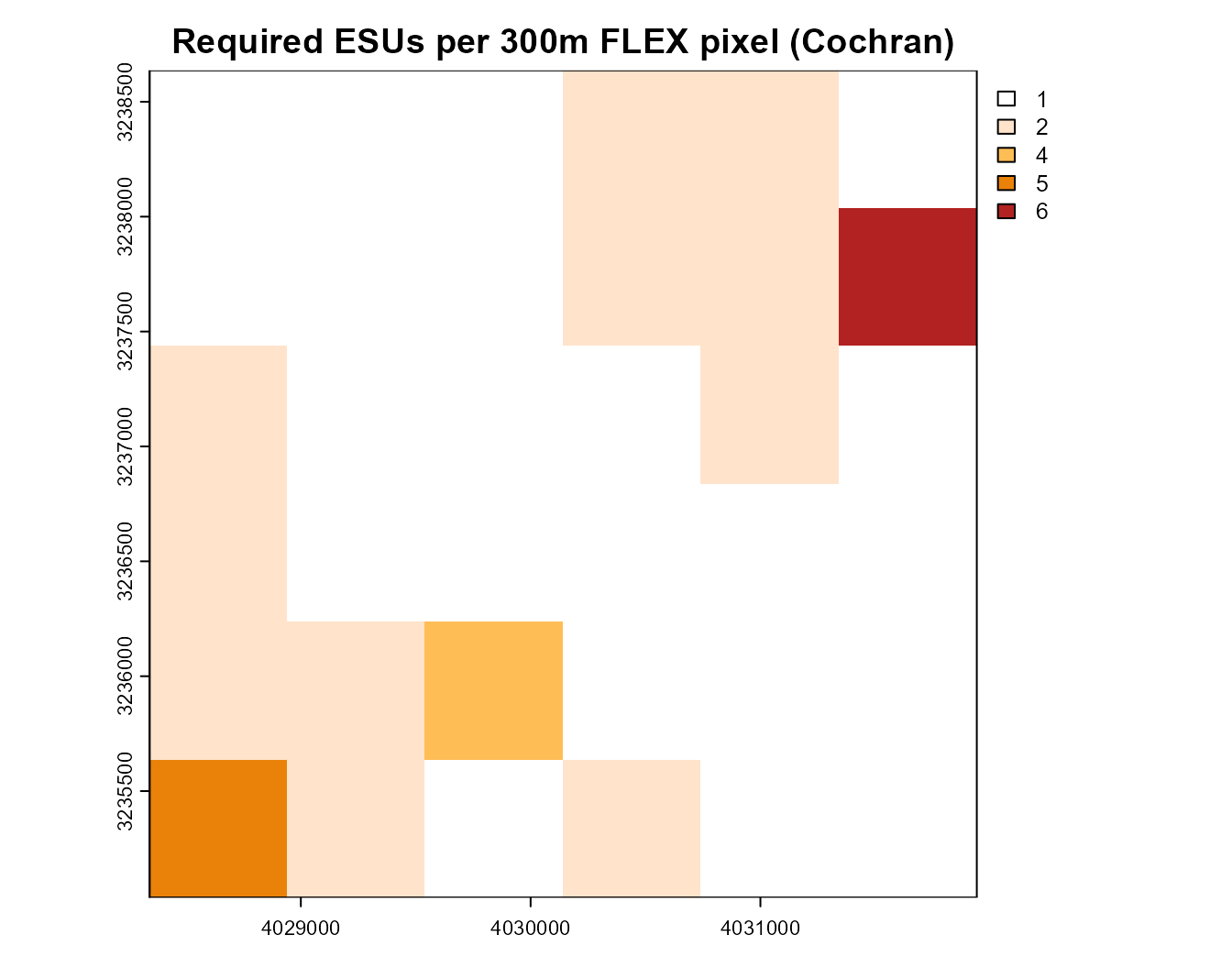

plot(n_per_flex, main = "Required ESUs per 300m FLEX pixel (Cochran)",
     col = colorRampPalette(c("white","peachpuff","orange","firebrick"))(50))

cat("ESUs required, scene summary:\n")
#> ESUs required, scene summary:
print(summary(terra::values(n_per_flex)))
#>       NDRE
#>  Min.   :1.000
#>  1st Qu.:1.000
#>  Median :1.000
#>  Mean   :1.657
#>  3rd Qu.:2.000
#>  Max.   :6.000
#>  NA's   :1

5. Homogeneous vs. heterogeneous FLEX pixels

A simple, transparent threshold on the same within-pixel SD used above (adjust sd_threshold for your own site/index/tolerance):

sd_threshold <- 0.05
flex_class <- terra::classify(ndre_300_sd, matrix(c(-Inf, sd_threshold, 1, sd_threshold, Inf, 2), ncol = 3, byrow = TRUE))

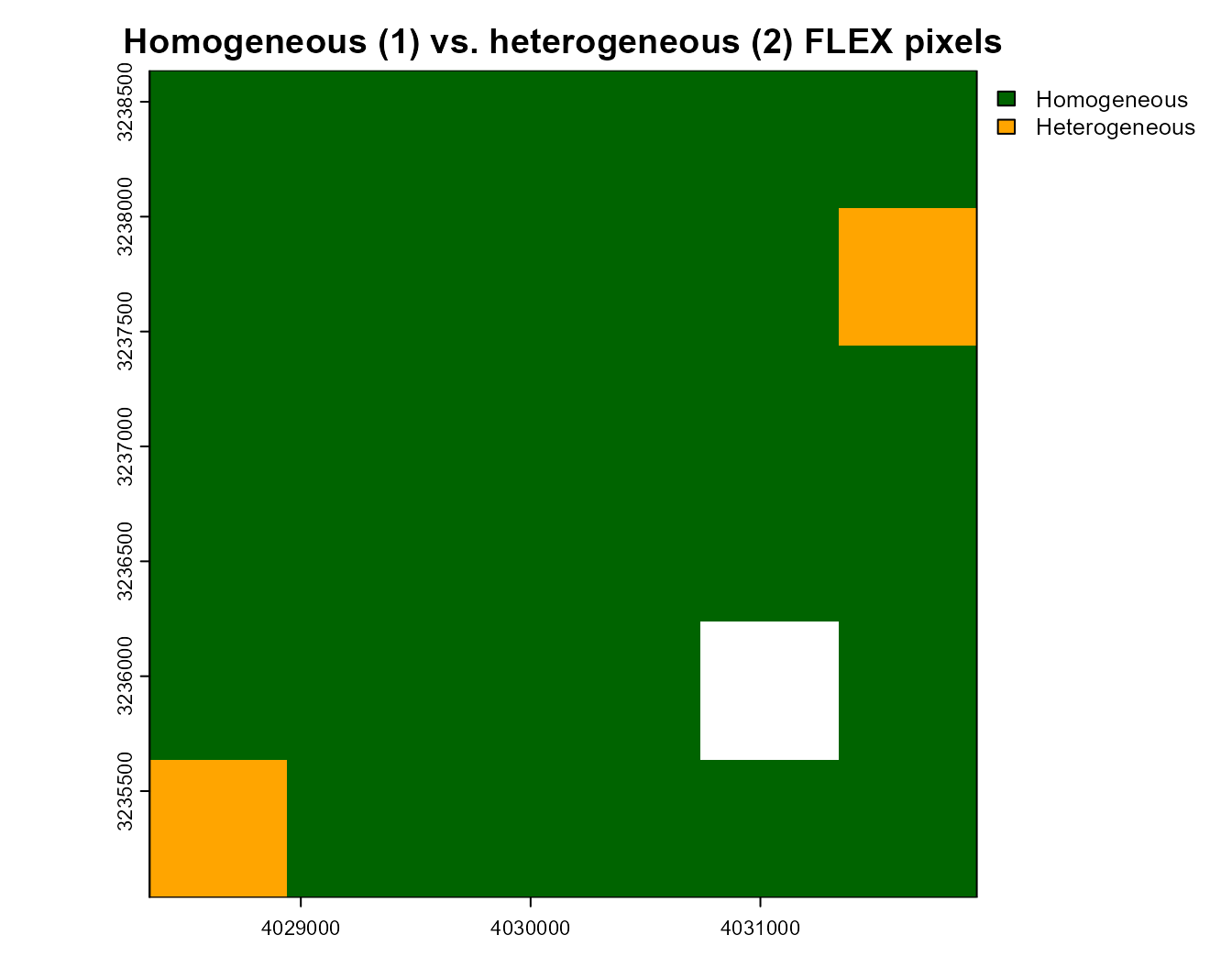

plot(flex_class, col = c("darkgreen","orange"), main = "Homogeneous (1) vs. heterogeneous (2) FLEX pixels",
     type = "classes", levels = c("Homogeneous","Heterogeneous"))

6. Trait retrieval (Cab, LAI, Car) at 10 m, aggregated to FLEX scale

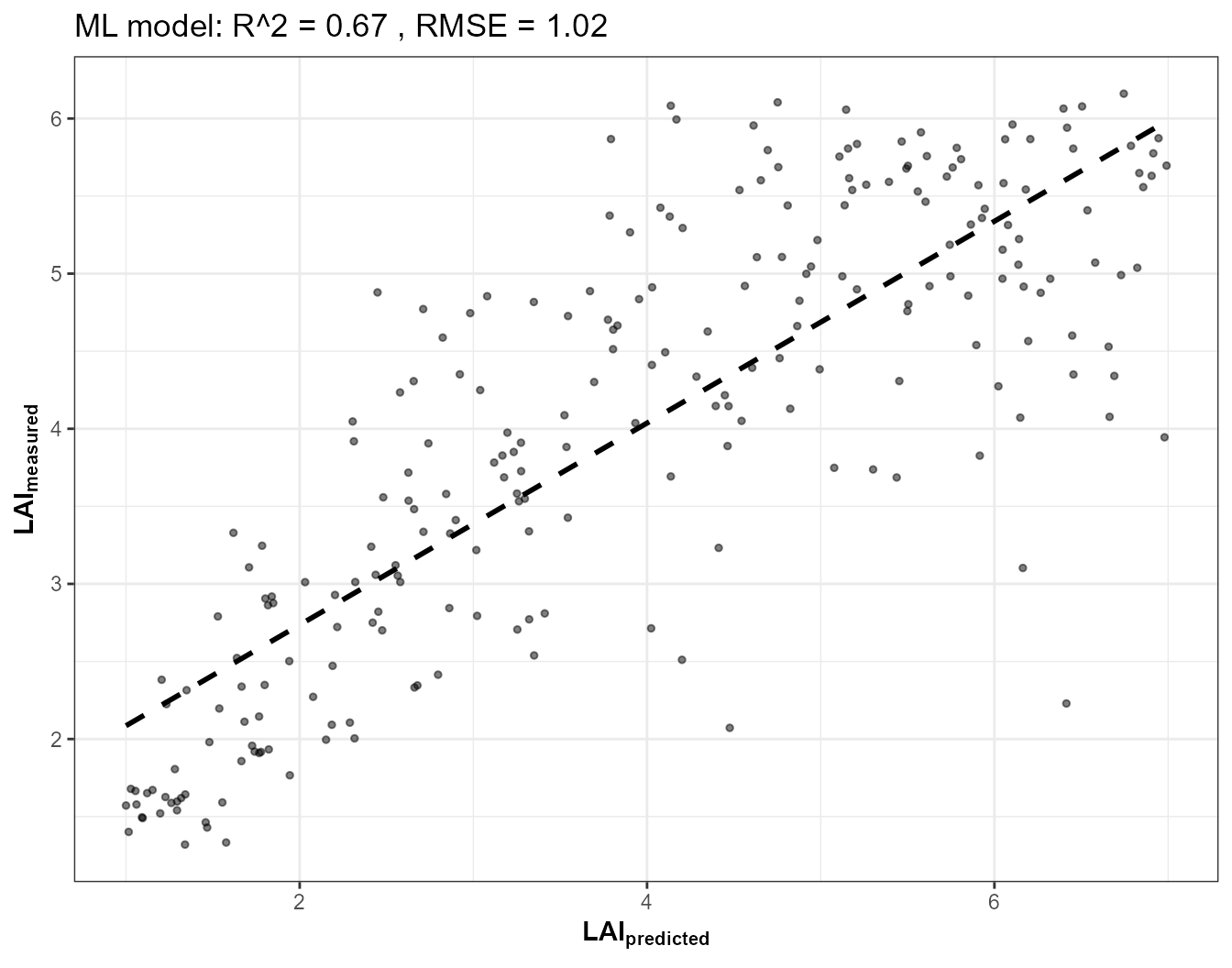

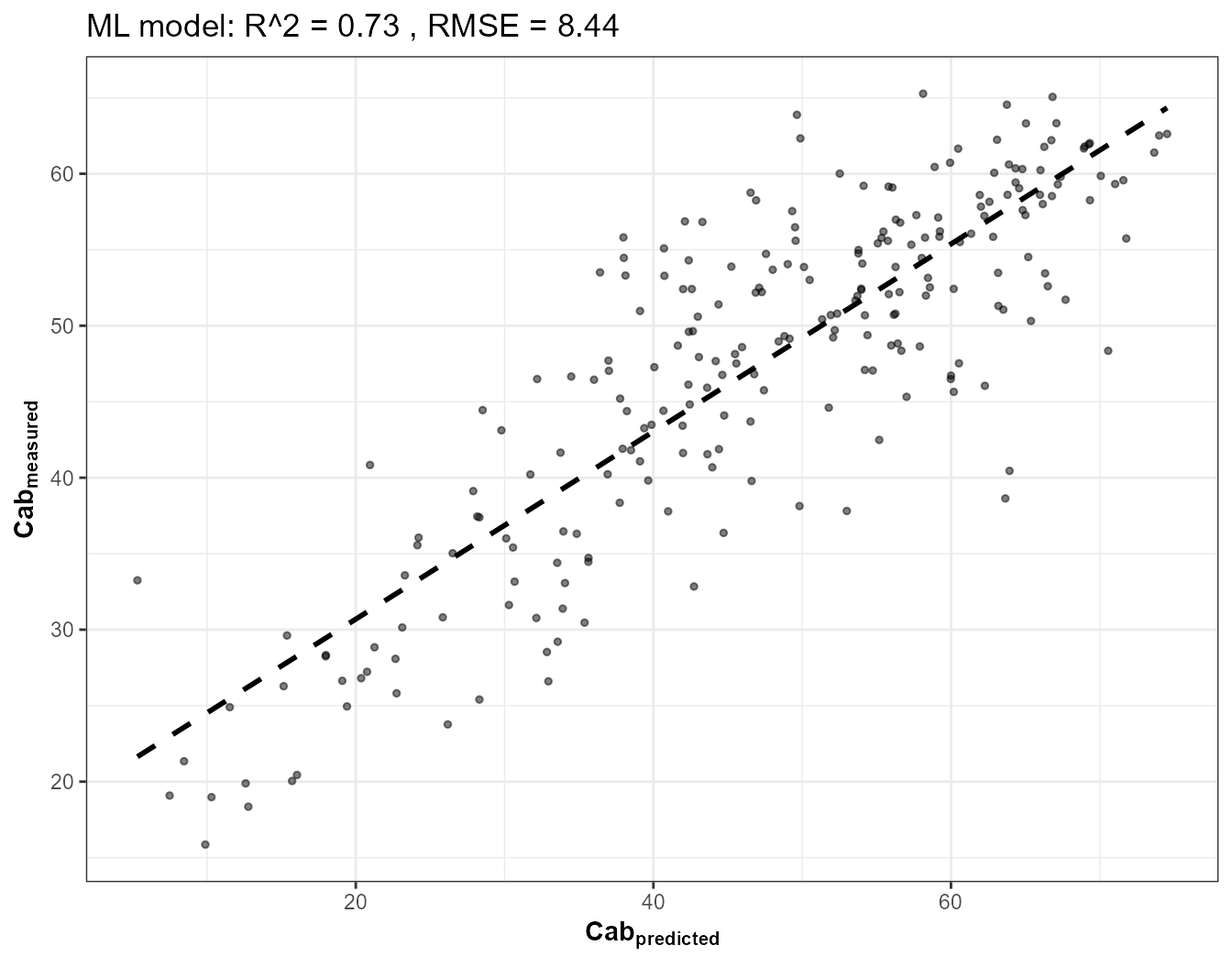

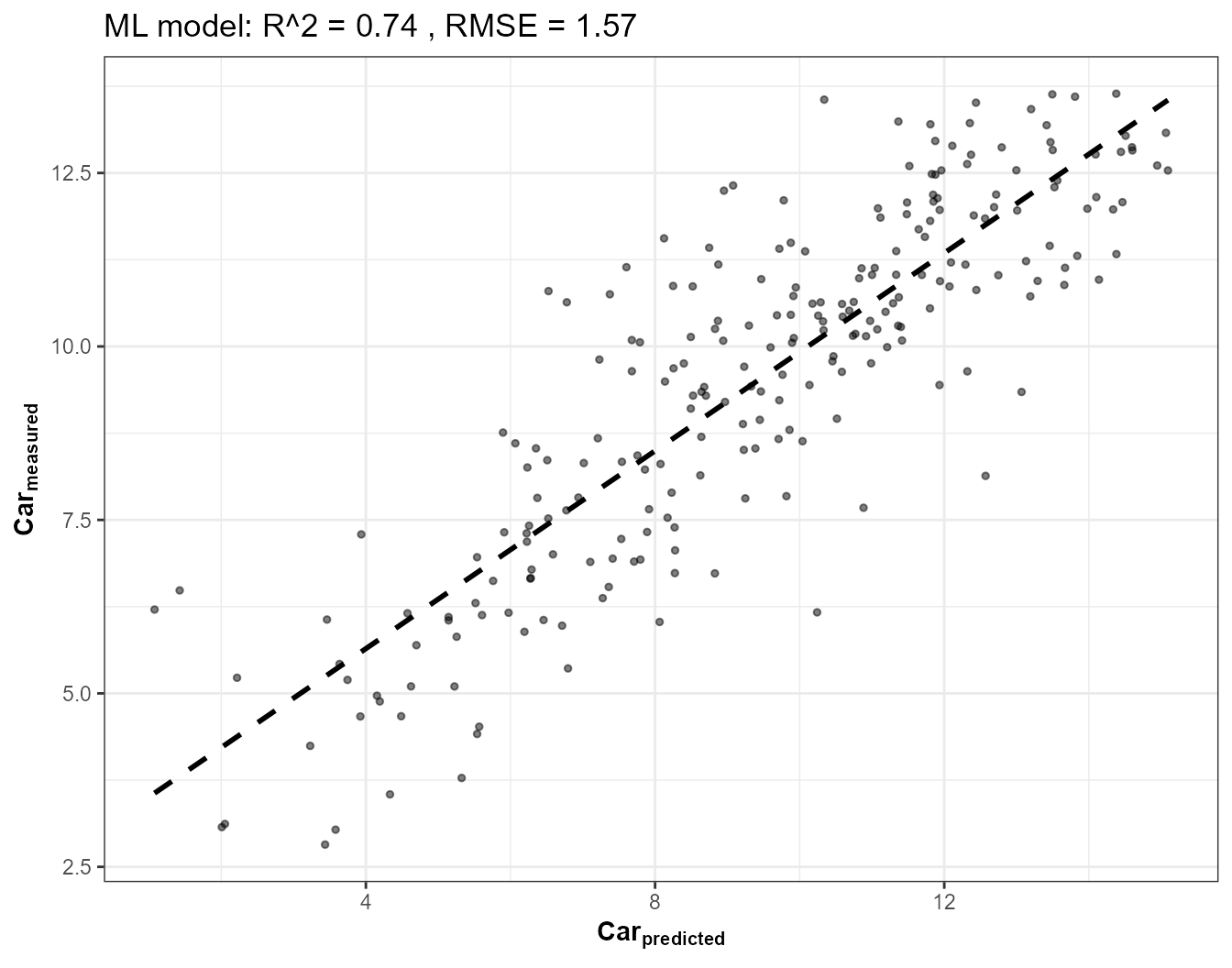

A spectral index is a proxy; the traits themselves are what a Cal/Val campaign is actually trying to validate. Train RF hybrid-inversion models (same get.inversion() pattern as Tutorials 15/17) for Cab, LAI, and Car on a realistic LUT, apply them per pixel at native 10 m resolution, then aggregate the trait maps to 300 m the same way the index was aggregated above – so heterogeneity is expressed directly in trait units:

n_samples <- 800
LUT <- as.data.frame(getLUT(inputs = ToolsRTM::inputsPROSAIL, nLUT = n_samples, setseed = 5))
LUT$LAI <- runif(n_samples, 1, 7)
wl <- 400:2500
set.seed(6)
soil_b <- runif(n_samples, 0.05, 0.30)
sim_refl <- t(sapply(seq_len(n_samples), function(i) {
  foursail(inputLUT = LUT[i, ], rsoil = rep(soil_b[i], length(wl)), LeafModel = "PROSPECT-PRO")$rsot
}))
refl_X <- as.data.frame(sim_refl); colnames(refl_X) <- paste0("X", wl)
refl_X <- cbind(id = seq_len(n_samples), refl_X)
se2a_full <- suppressMessages(get.spectra.convolved(rfl = refl_X, sensor = "Sentinel2a", plot.spectra = FALSE))
names(se2a_full) <- c("id","B1","B2","B3","B4","B5","B6","B7","B8","B8A","B9","B10","B11","B12")
keep <- c("B2","B3","B4","B5","B6","B7","B8","B8A","B11","B12")
se2a <- se2a_full[, keep]; names(se2a) <- real_names
train_df <- cbind(LUT, se2a)

fits <- lapply(c("Cab", "LAI", "Car"), function(trait) {
  get.inversion(data = train_df, depVar = trait, inputs = real_names,
                algorithm = "RF", n.samples = nrow(train_df), seed = 42)
})

names(fits) <- c("Cab", "LAI", "Car")

pix_df <- as.data.frame(refl10, na.rm = FALSE)
ok_rows <- stats::complete.cases(pix_df)
trait_maps <- ndre_veg  # template raster for geometry
trait_rasters <- list()
for (trait in c("Cab", "LAI", "Car")) {
  vals <- rep(NA_real_, nrow(pix_df))
  vals[ok_rows] <- as.numeric(predict(fits[[trait]]$model, newdata = pix_df[ok_rows, real_names]))
  r <- ndre10
  terra::values(r) <- vals
  r <- terra::mask(r, veg_mask, maskvalue = FALSE)
  trait_rasters[[trait]] <- r
}
op <- par(mfrow = c(1, 3))
plot(trait_rasters$Cab, main = "Cab (10m)", col = colorRampPalette(c("khaki","darkgreen"))(50))
plot(trait_rasters$LAI, main = "LAI (10m)", col = colorRampPalette(c("khaki","darkgreen"))(50))
plot(trait_rasters$Car, main = "Car (10m)", col = colorRampPalette(c("khaki","orange"))(50))

par(op)
trait_300_sd <- lapply(trait_rasters, terra::aggregate, fact = 30, fun = "sd", na.rm = TRUE)
op <- par(mfrow = c(1, 3))

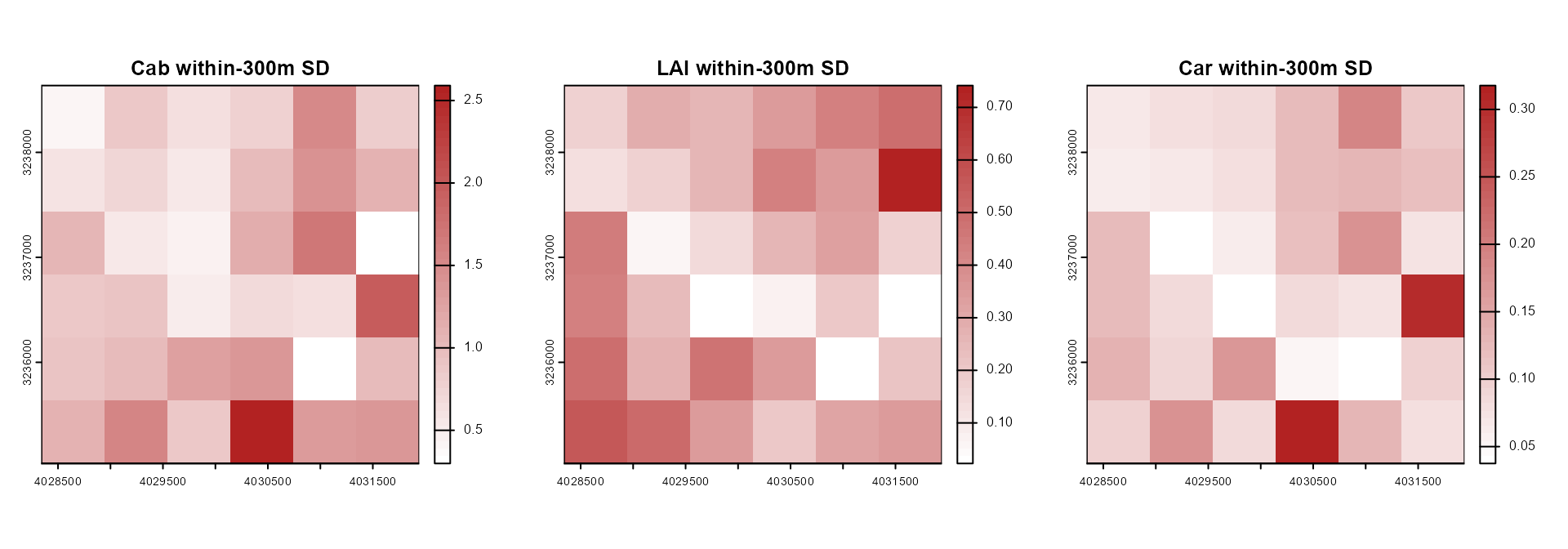

plot(trait_300_sd$Cab, main = "Cab within-300m SD", col = colorRampPalette(c("white","firebrick"))(50))
plot(trait_300_sd$LAI, main = "LAI within-300m SD", col = colorRampPalette(c("white","firebrick"))(50))
plot(trait_300_sd$Car, main = "Car within-300m SD", col = colorRampPalette(c("white","firebrick"))(50))

par(op)

7. Does spectral heterogeneity track trait heterogeneity?

The whole point of going beyond a single index: check whether the NDRE-based heterogeneity map from Section 3 actually agrees with the trait-based one – if a pixel reads “heterogeneous” in NDRE but “homogeneous” in Cab/LAI, that’s a real, useful finding for Cal/Val planning, not something to average away.

common <- !is.na(terra::values(ndre_300_sd)) & !is.na(terra::values(trait_300_sd$LAI))
cor_ndre_lai <- stats::cor(terra::values(ndre_300_sd)[common], terra::values(trait_300_sd$LAI)[common])
cat("Correlation, NDRE-SD vs. LAI-SD across FLEX pixels:", round(cor_ndre_lai, 3), "\n")
#> Correlation, NDRE-SD vs. LAI-SD across FLEX pixels: 0.869

Take-home for FLEX Cal/Val

  • A FLEX pixel’s required ESU count is not a fixed number – it depends on the pixel’s own real within-pixel variability, directly computable from a much finer-resolution sensor already in orbit (Sentinel-2).
  • Spectral-index heterogeneity (NDRE) and trait heterogeneity (Cab/LAI/Car, from a real hybrid-inversion model, not a proxy) can and do disagree at the pixel level – checking both, not just one, before committing ESUs to a candidate validation site is the more defensible practice.
  • This entire pipeline uses the same real, verified building blocks as Tutorials 15/17/18 (get.satellite_collection(), get.sentinel2_cube(), getSpatial_index(), get.inversion()) – nothing here is FLEX-specific in the package itself; FLEX’s 300m scale is simply the aggregation factor chosen for this analysis, easily changed for any other mission’s native pixel size.
