Full pipeline: simulate, convolve, invert

course-pipeline.Rmd

This article walks through the Scripts/R/For*/ course pipeline shipped in the 0-RTM-Suite repo alongside this package: a consistent simulate → convolve → index → invert workflow, one folder per canopy model (ForPROSAIL, ForFoursail2, ForINFORM), plus ForSPART (soil-plant-atmosphere, top-of-atmosphere) and ForMARMIT (soil-only, moisture retrieval). Every figure below is real output from an actual run of these scripts, not a mockup – code chunks are shown but not re-executed when this article is built (the full pipeline takes several minutes per folder), so treat them as copy-paste starting points against your own installed package.

If you just want to run something, the fastest path is:

if (!requireNamespace("ToolsRTM", quietly = TRUE)) remotes::install_gitlab("caminoccg/toolsrtm")
library(ToolsRTM)
source("Scripts/R/ForPROSAIL/3-simulate_LUT.R")   # ~10s, 100 simulations
source("Scripts/R/ForPROSAIL/4-inversion_ML.R")   # a few minutes, 11 algorithms x 3 traits
source("Scripts/R/ForPROSAIL/5-inversion_DL.R")   # a few minutes, needs Scripts/R/Pipeline/0-setup_python_env.R run once first

Everything below explains what each step actually does and why, using ForPROSAIL (fourSAIL canopy model) as the running example, then shows how the same pipeline looks for the other four folders with just a couple of lines changed.

1. Simulate a LUT

Every 1-simulate_LUT.R (3-simulate_LUT.R in ForPROSAIL specifically, numbered after that folder’s pre-existing field-calibration scripts) does the same six things:

  1. Draw n.samples (always 100) trait combinations via getLUT(), optionally correlating one trait with another via correlatedValue() (e.g. Car tracking Cab, since real leaf pigments co-vary).
  2. Save a histogram grid and a correlation heatmap of the sampled traits, so you can see at a glance what actually varied and how.
  3. Build a soil spectrum – get.marmit.rsoil() by default, so soil moisture is physically realistic rather than a flat guess.
  4. Run the canopy model (simulate_RTM(), which dispatches to foursail()/foursail2()/inform()) for every LUT row.
  5. Convolve to Sentinel-2A, Sentinel-2B, and PRISMA via get.spectra.convolved(), and compute vegetation indices at native resolution and per sensor via getIndices()/getIndicesSE2().
  6. Save diagnostic figures and a 1-datasets.rds that the next two scripts read back.
n.samples    <- 100
leaf.model   <- "PROSPECT-D"
canopy.model <- "fourSAIL"
correlate.traits <- list(Car = list(with = "Cab", scale = 1/4, r = 0.8))

# ... build LUT, apply correlate.traits, run simulate_RTM() per row,
#     convolve to sensors, compute indices -- see the full script for detail.

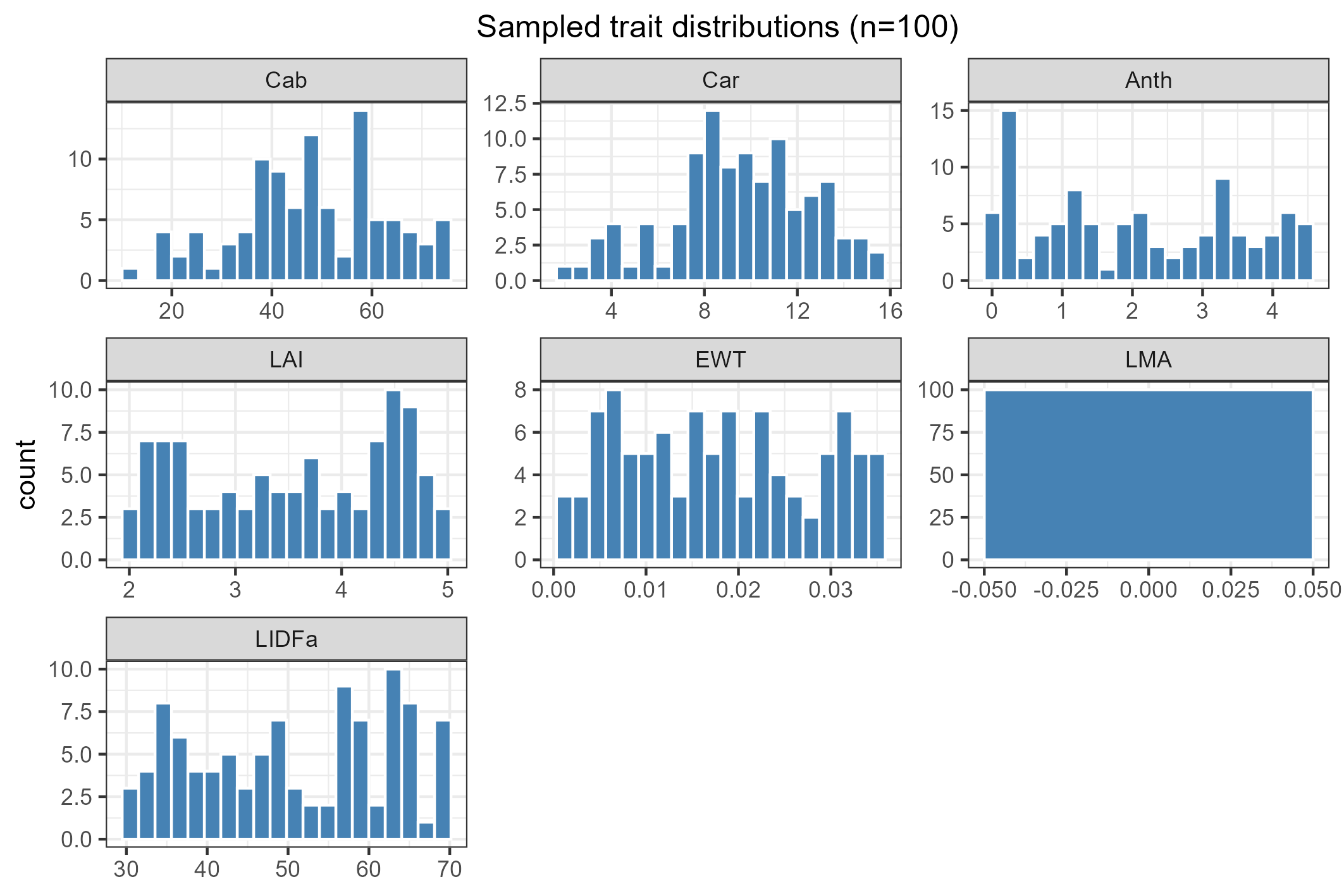

Trait distributions and correlations

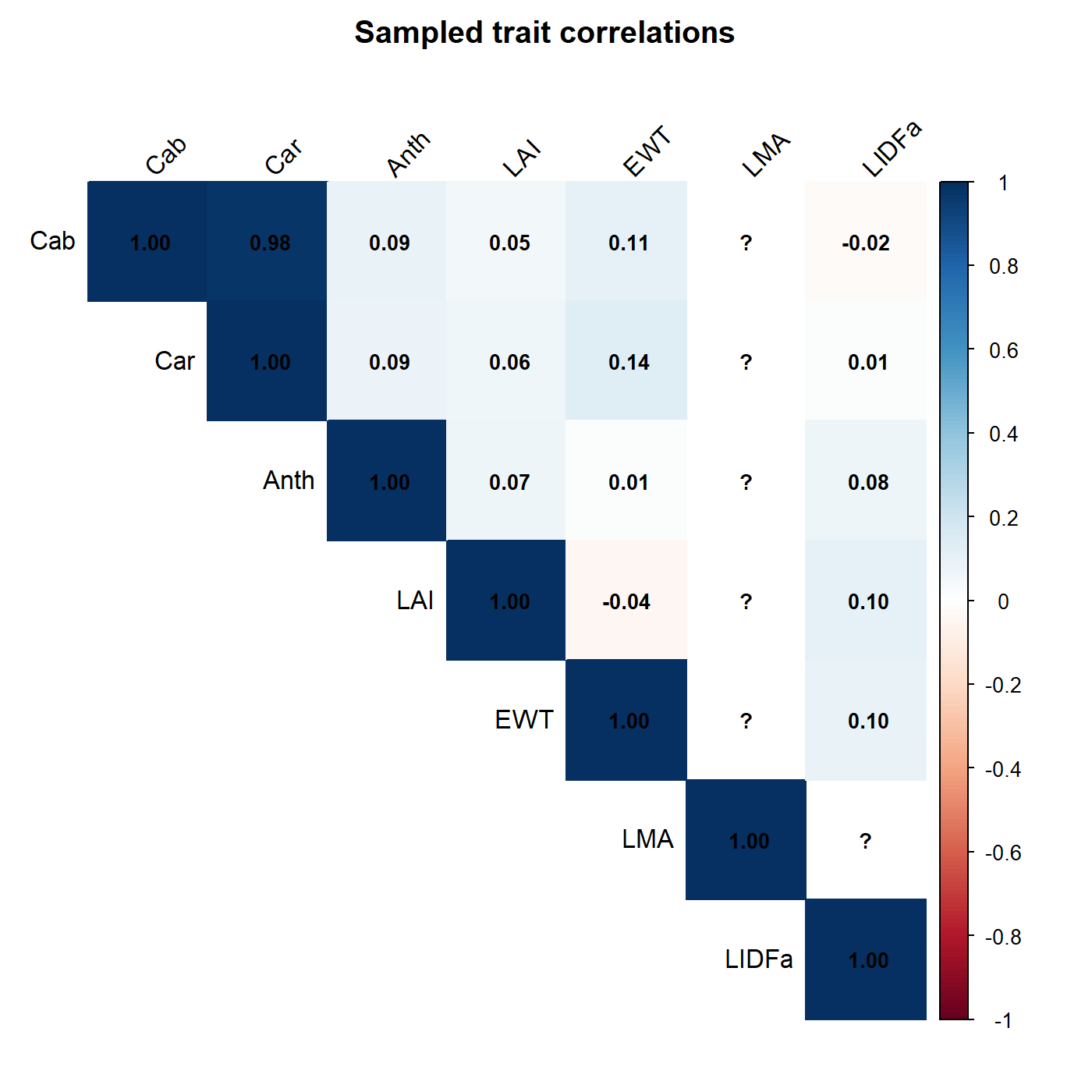

Note Car~Cab at r=0.98 – much stronger than the target r=0.8 passed to correlatedValue(). That’s a real, useful thing to notice when working with this function: the realized correlation can run higher than the target, especially for narrow-range traits, so always check cor() of the result rather than trusting the parameter alone (both scripts print the realized r for exactly this reason).

Reflectance by trait, and by trait percentile

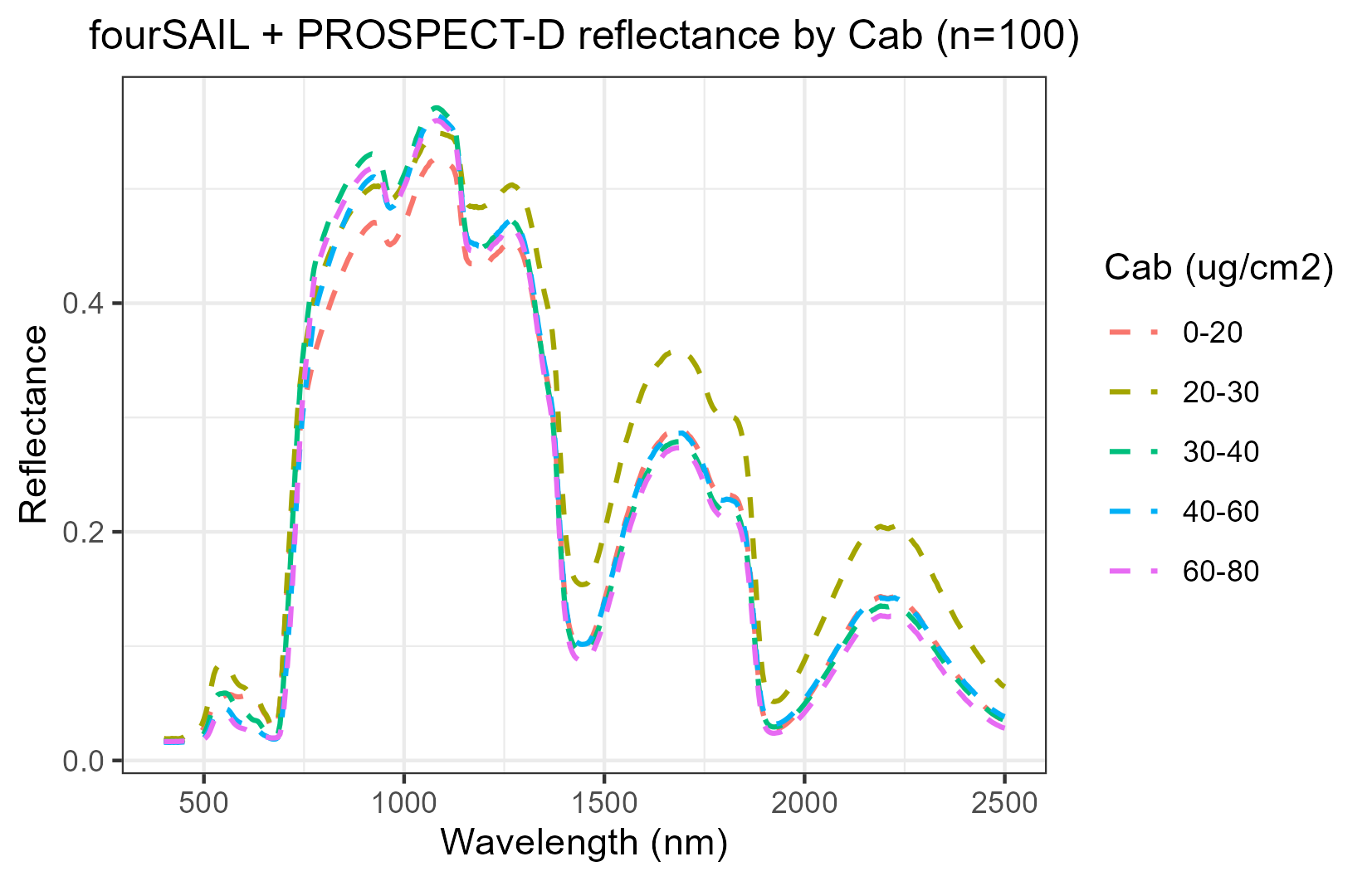

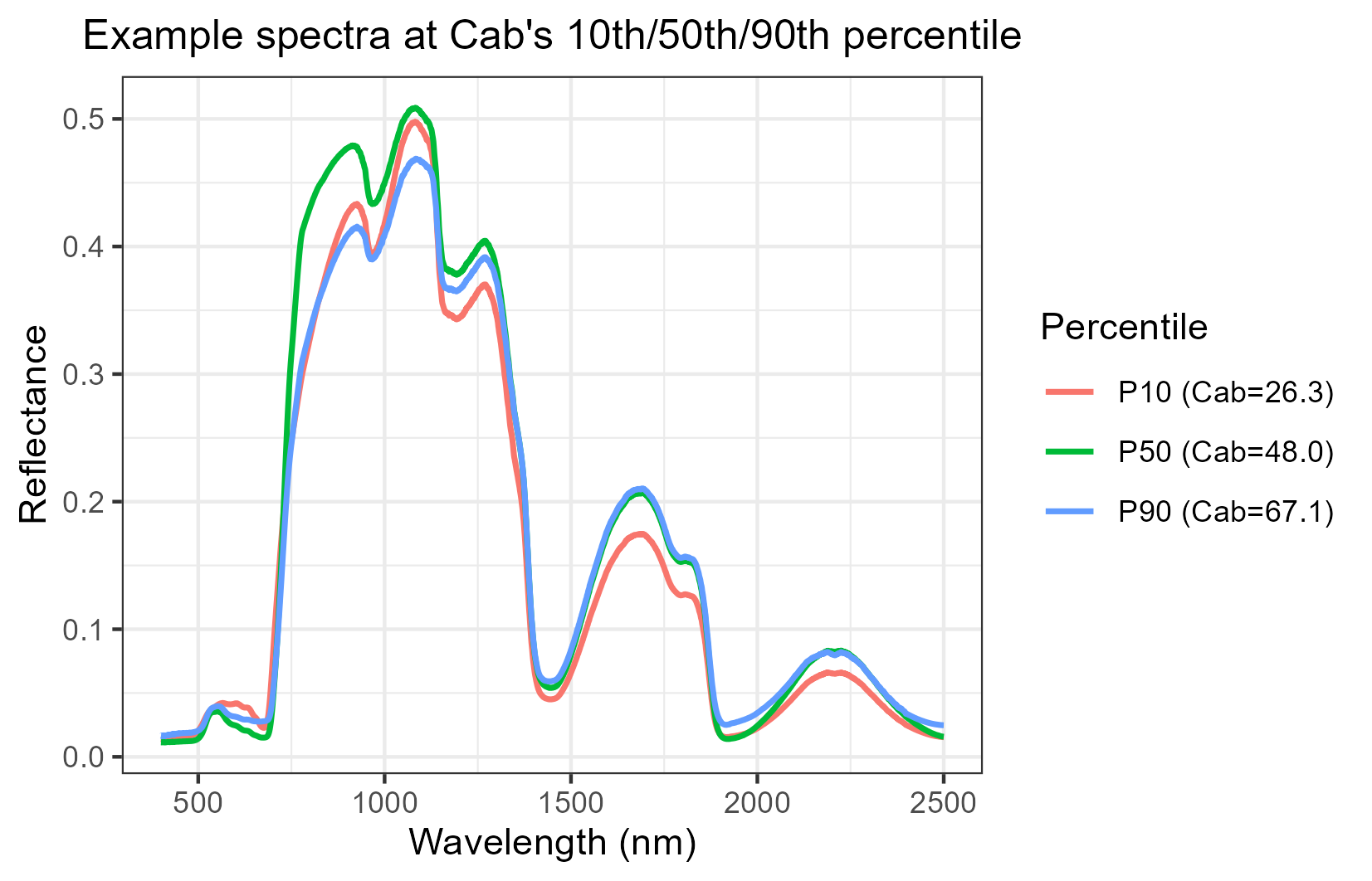

The first plot bins simulations by Cab and averages within each bin – good for seeing the overall trend (reflectance drops in the visible as chlorophyll increases). The second shows three individual simulated spectra at Cab’s 10th/50th/90th percentile, unaveraged – useful for sanity-checking that a single simulation looks physically reasonable, not just the ensemble.

Sensor convolution

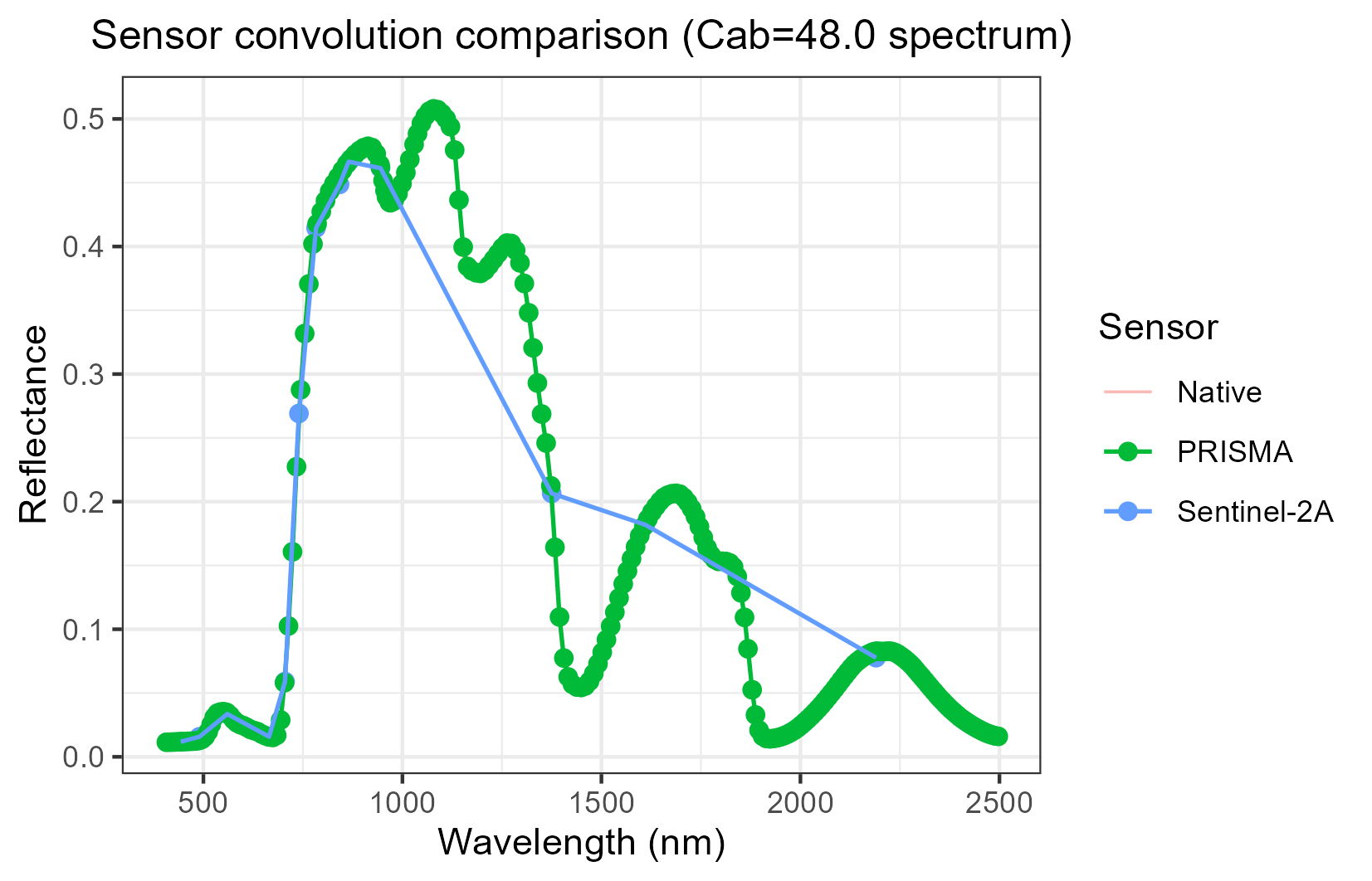

PRISMA (green) is dense enough to nearly retrace the native curve; Sentinel-2A (blue) is 13 discrete bands. This is the same get.spectra.convolved() used throughout the suite – Scripts/R/Comparison/compare_RTM_models.R, Scripts/R/Pipeline/1-simulate_LUT.R, and every ForXXX folder all call it the same way.

2. Classic ML inversion

4-inversion_ML.R loops over target traits (Cab, LAI, EWT) and 11 of get.inversion()’s 12 algorithms (NN is skipped here – caret’s nnet tuning grid is impractically slow against ~250 predictors at only 100 training rows; see the script’s comment for the diagnosis). get.inversion(save.model=TRUE, save.path=...) already saves the fitted model, per-algorithm statistics, and a predicted-vs-observed scatter plot – the script doesn’t reimplement any of that, just loops and aggregates.

target_traits <- c("Cab", "LAI", "EWT")
algorithms <- c("PLSR", "SVM", "RF", "GB", "Bayesian",
                "AdaBag", "BRNN", "xGB", "RVM", "qLASSO", "Ensemble")

for (target_trait in target_traits) {
  for (algo in algorithms) {
    fit <- get.inversion(data = dataset, depVar = target_trait,
                          inputs = predictor_cols, algorithm = algo,
                          save.model = TRUE, save.path = model_dir)
  }
}

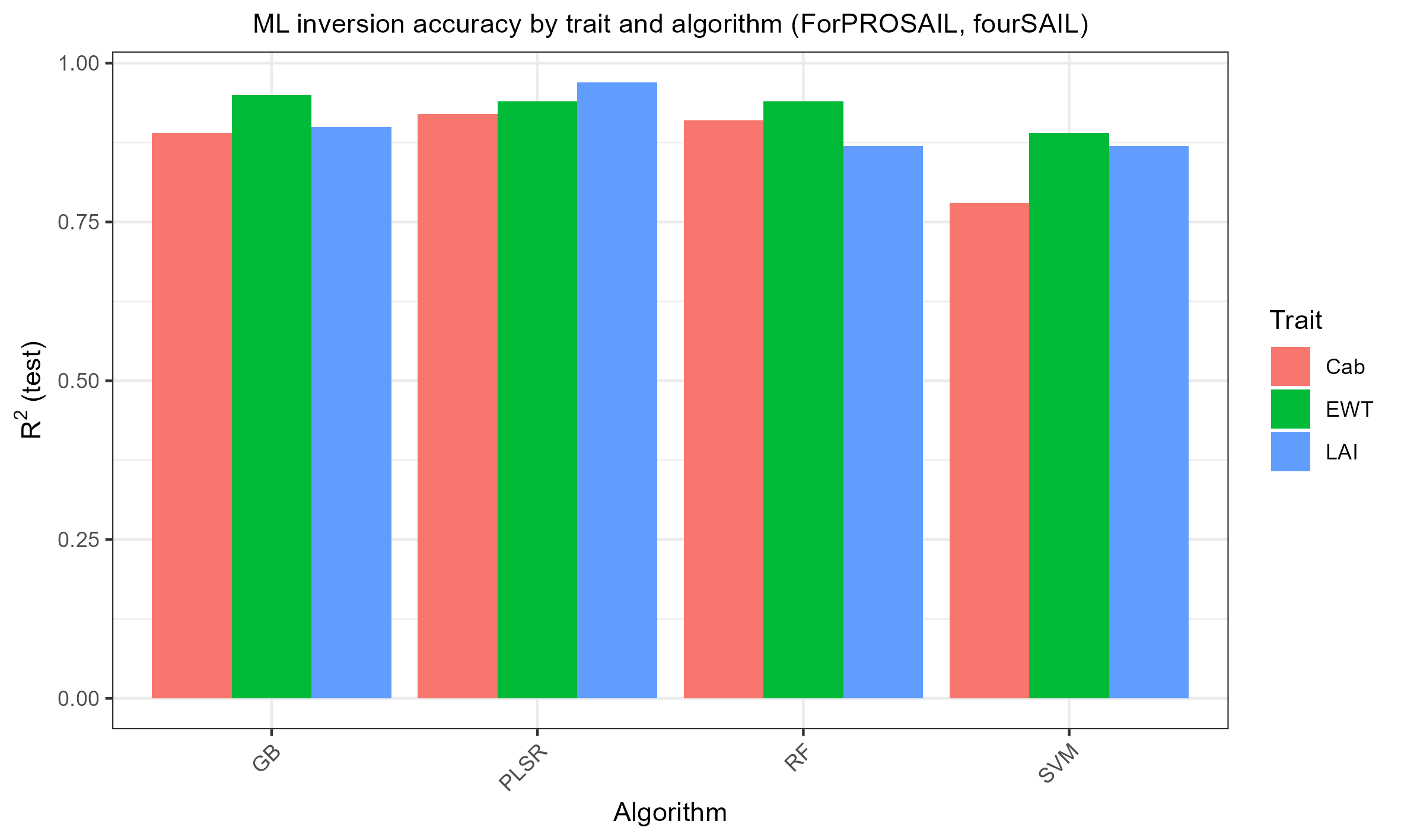

PLSR/SVM/RF/GB all succeed with R² between 0.78 and 0.97 across the three traits (the other 7 algorithms need optional packages – bartMachine, adabag, brnn, xgboost, kernlab, rqPen – not everyone has installed; they fail cleanly with a named-package message, not a crash).

3. Deep learning inversion

5-inversion_DL.R is the same idea via getMLmodel(), training both 'Hidden-layers' and 'CNN' architectures per trait (TensorFlow/Keras backend – run Scripts/R/Pipeline/0-setup_python_env.R once first to provision the Python environment reticulate needs). One thing worth calling out because it cost real debugging time while building this: getMLmodel() calls callback_early_stopping() without a package prefix, so library(keras) must actually be attached (not just installed) before calling it, or every fit fails with could not find function "callback_early_stopping". Every *-inversion_DL.R script starts with this exact block for that reason:

local_venv_root <- file.path(Sys.getenv("LOCALAPPDATA"), "r-reticulate-venvs")
Sys.setenv(RETICULATE_VIRTUALENV_ROOT = local_venv_root)
Sys.setenv(WORKON_HOME = local_venv_root)
Sys.setenv(TF_USE_LEGACY_KERAS = "1")
library(reticulate)
py_require(packages = c("tensorflow", "tf-keras"))
library(keras)

4. Same pipeline, different canopy model

canopy.model is a single variable at the top of 1-simulate_LUT.R – there is no separate script per model in Scripts/R/Pipeline/, and the per-folder ForFoursail2/ForINFORM scripts differ from ForPROSAIL’s only in that one line (plus leaf.model, since foursail2/INFORM additionally need a handful of crown/canopy-geometry LUT columns fourSAIL doesn’t use – see each folder’s 1-simulate_LUT.R for the exact list, fraction_brown/Cv/sd/cd/h/etc).

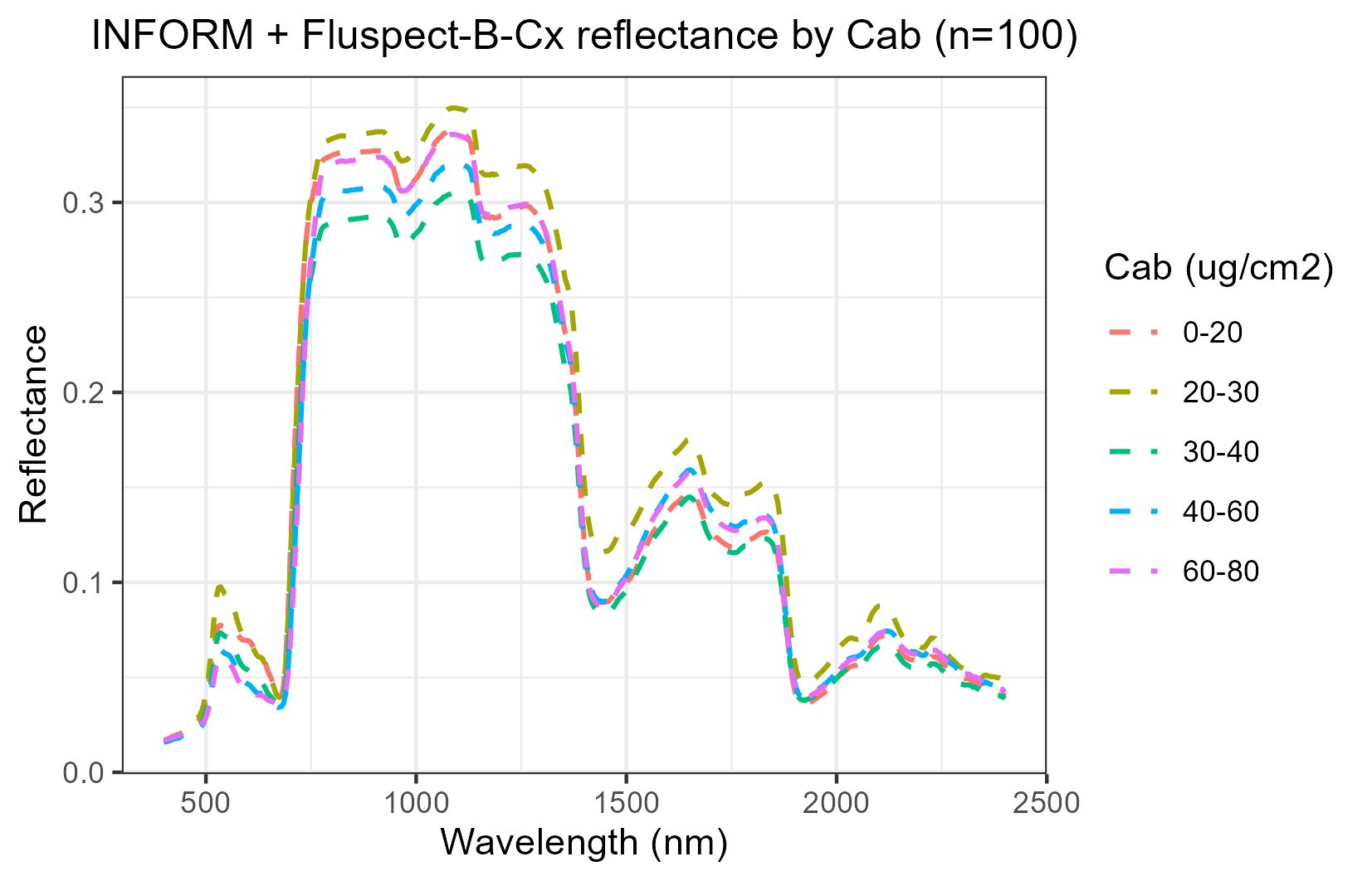

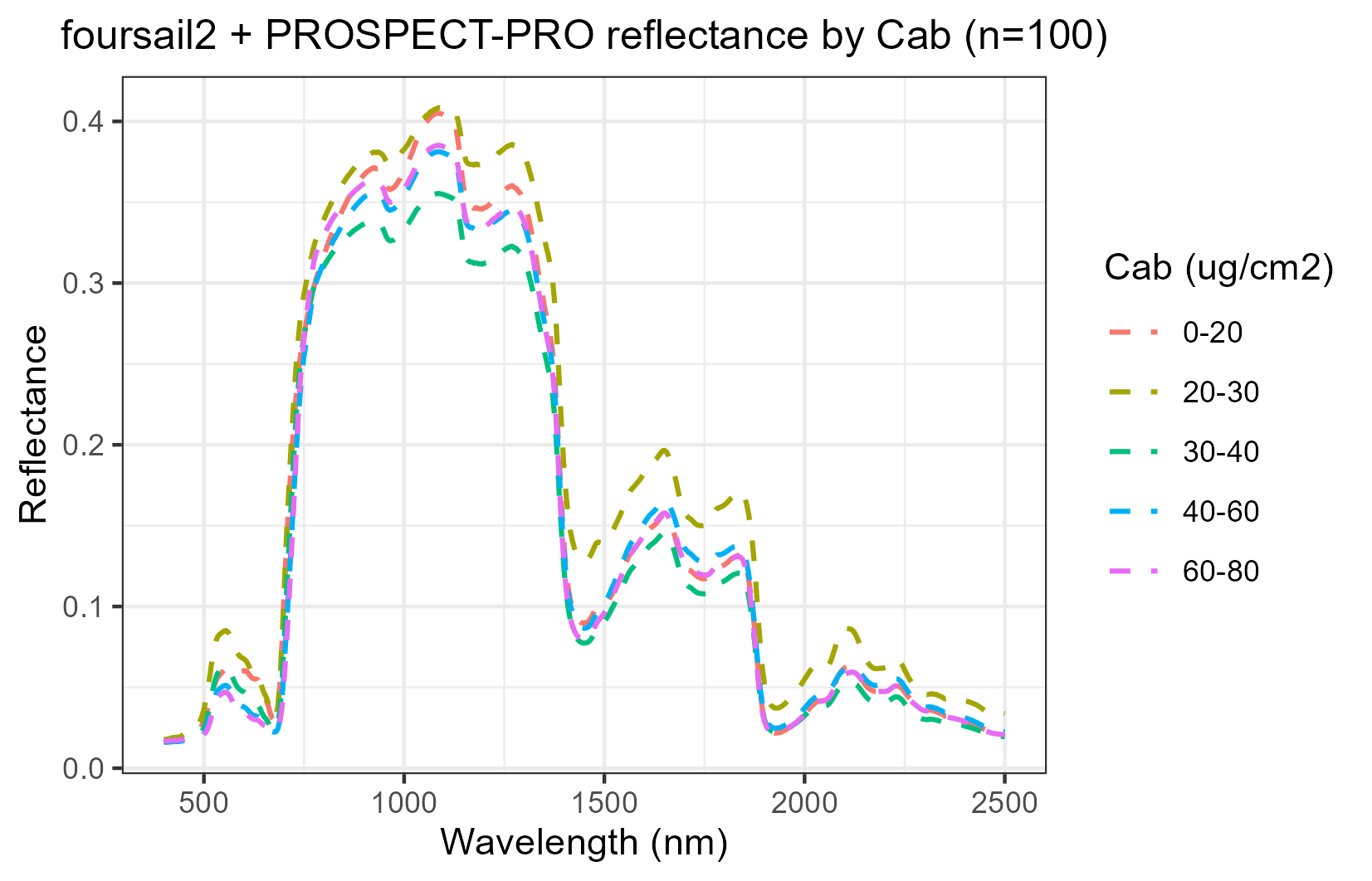

INFORM’s forest-level reflectance is visibly lower overall than fourSAIL’s turbid-medium canopy – expected, from crown/shadow geometry that fourSAIL doesn’t model at all.

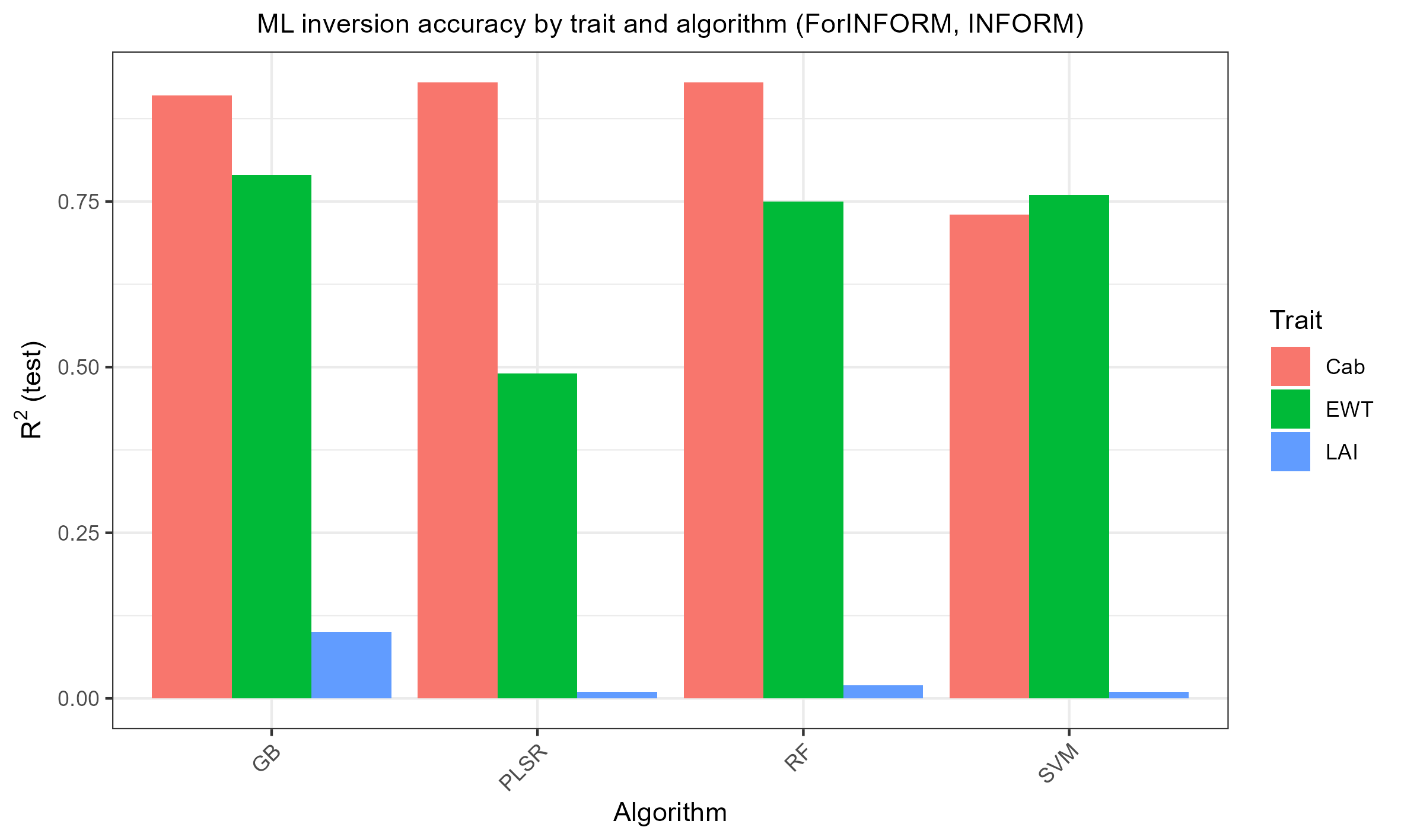

A genuine finding, not a bug: INFORM’s LAI barely inverts

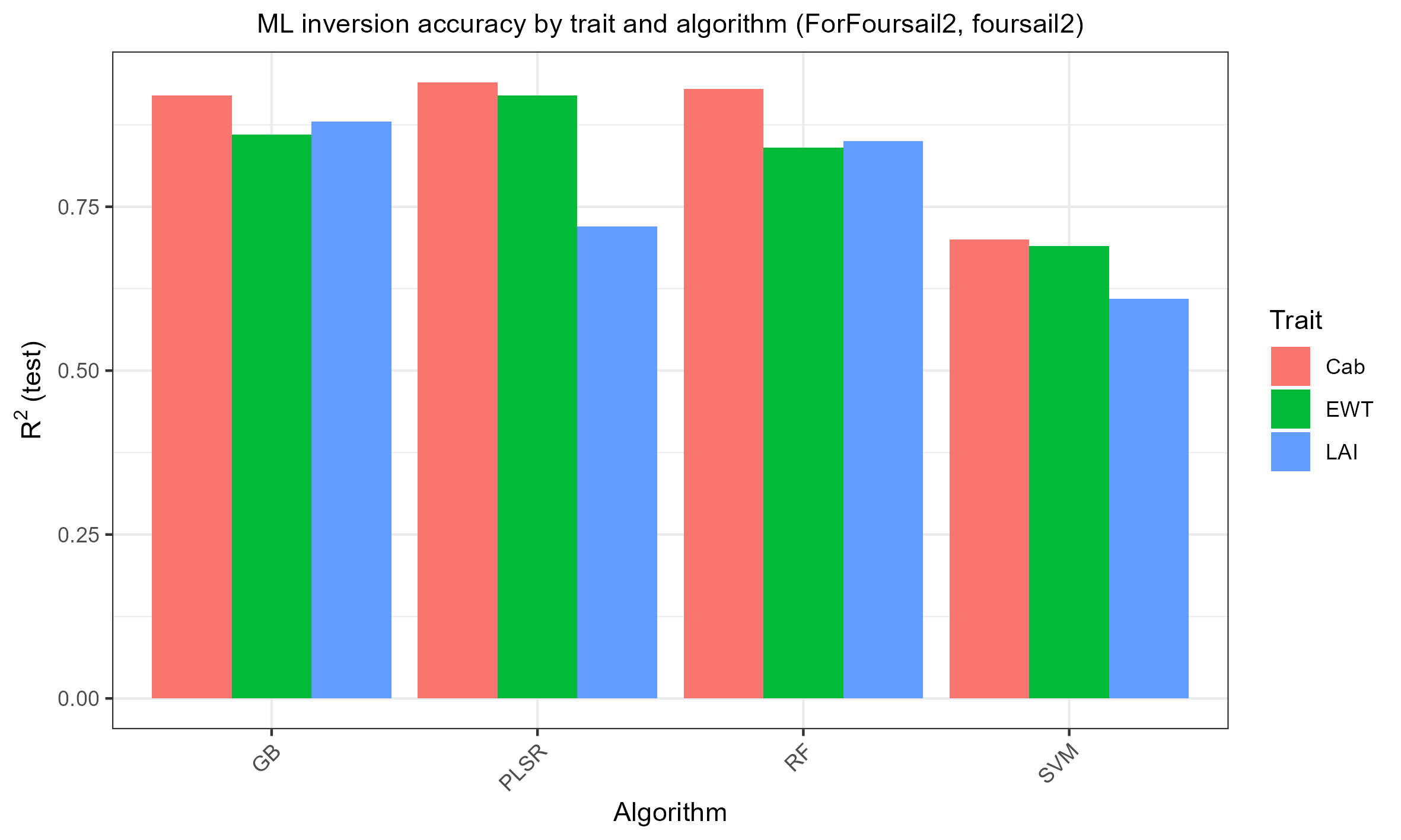

Compare against foursail2’s own summary:

Cab and EWT invert similarly well in both. LAI is the story: R²=0.61-0.88 with foursail2, but only R²=0.01-0.10 with INFORM. This isn’t a bug – confirmed by checking LAI’s own variance and its univariate correlation with reflectance (both real, just modest: r≈-0.26 with NIR). The reason is that ForINFORM/1-simulate_LUT.R holds INFORM’s crown-geometry parameters (sd/cd/h/LAIu – stem density, crown diameter, tree height, understory LAI) constant across all 100 samples, so LAI’s own signal is weak relative to what actually dominates forest reflectance variation in reality. Want better LAI retrieval from INFORM? Vary those crown-geometry parameters too, not just LAI.

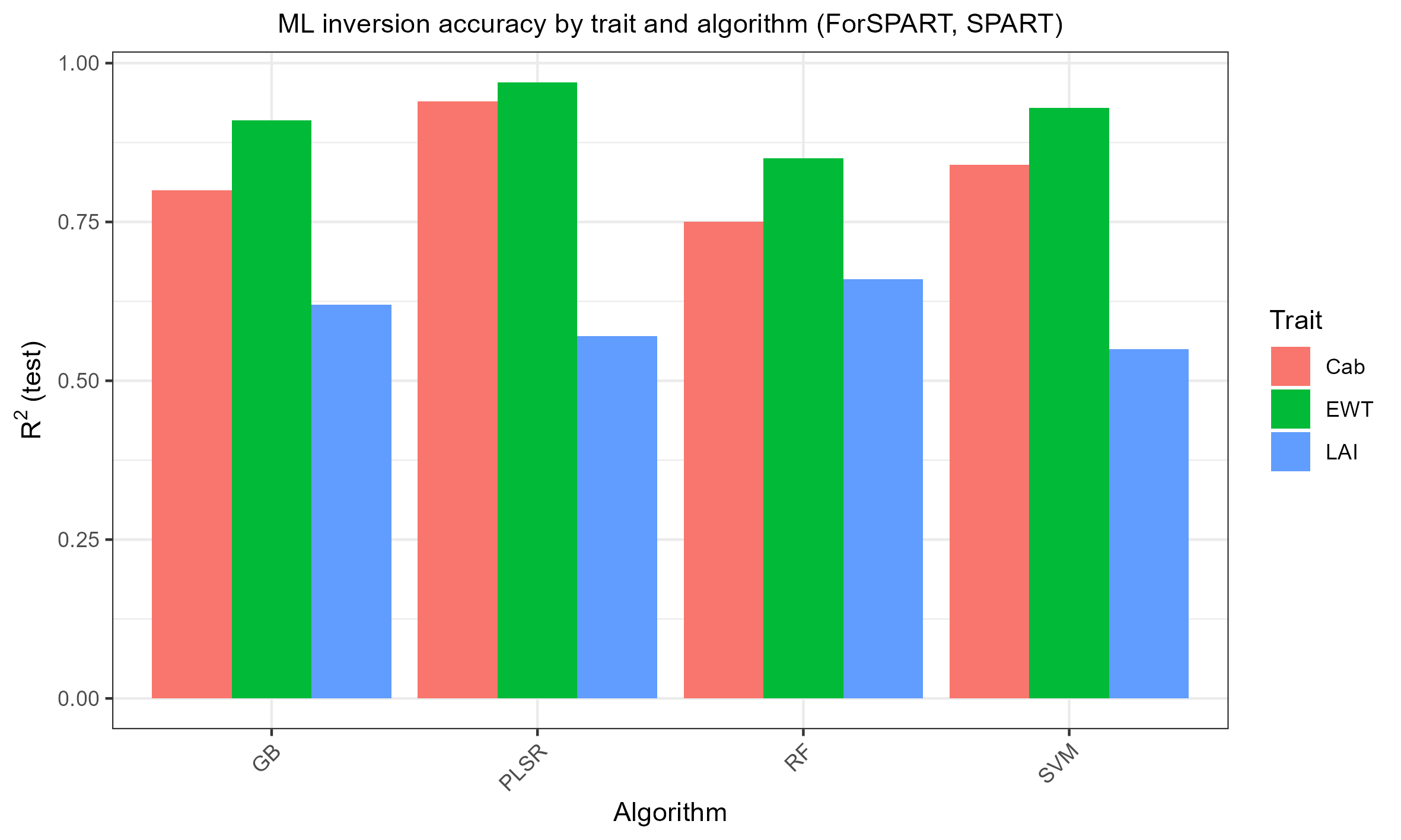

5. SPART: top-of-canopy and top-of-atmosphere

ForSPART is structurally different from the three canopy-model folders: SPART() returns TOC and TOA reflectance already convolved to a chosen real sensor (ToolsRTM::Sentinel2A.MSI/TerraAqua.MODIS, etc, both bundled) in one call – there’s no separate “simulate native, then convolve” step, so ForSPART/1-simulate_LUT.R runs SPART() once per sensor per LUT row instead.

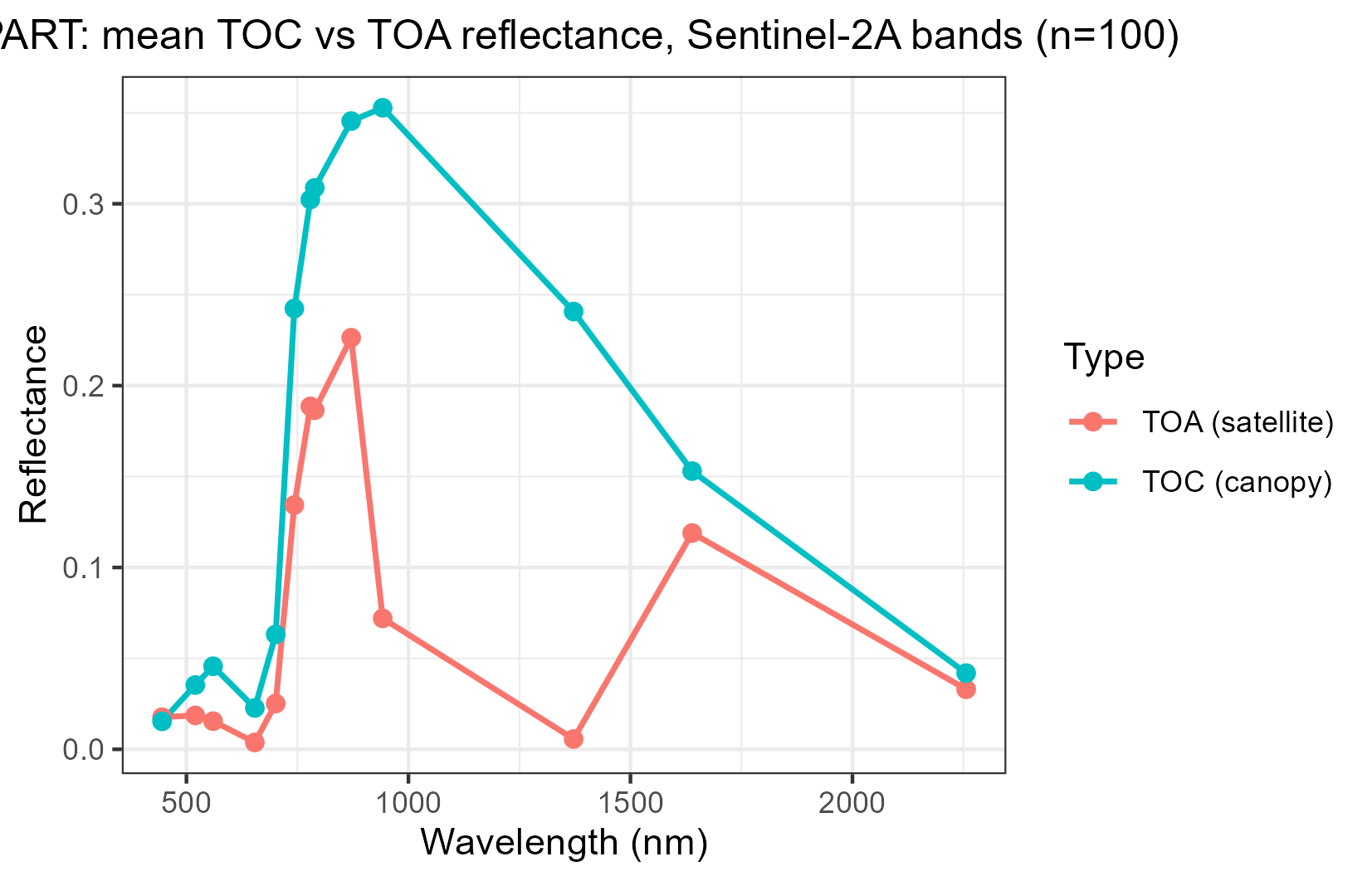

The atmospheric dip at ~1375nm (strong water-vapour absorption) shows up in TOA but not TOC – exactly what real atmospheric correction has to deal with.

6. MARMIT: soil only, no vegetation

ForMARMIT is the odd one out on purpose: MARMIT has no leaf or canopy model, so there’s no Cab/LAI/EWT to invert. Its two physical knobs are L (surface water film thickness, cm) and eps (fraction of the surface that’s wet); the single target trait is SMC (gravimetric soil moisture %, MARMIT’s own physical output via sigmoid.soil()).

This pipeline runs on the bundled Bablet_2016 soil database. All 8 official MARMIT databases (Bablet 2016, Dupiau 2020, Humper 2015, Lesaignoux 2008, Liu 2002, Lobell 2002, Marcq 2012, Philpot 2014 – see the MARMIT GitLab) are available directly from this monorepo’s own databases/ folder (repo root) – pass db_root = "databases" and database = "<name>" to get.marmit.rsoil() to use any of them, no download needed.

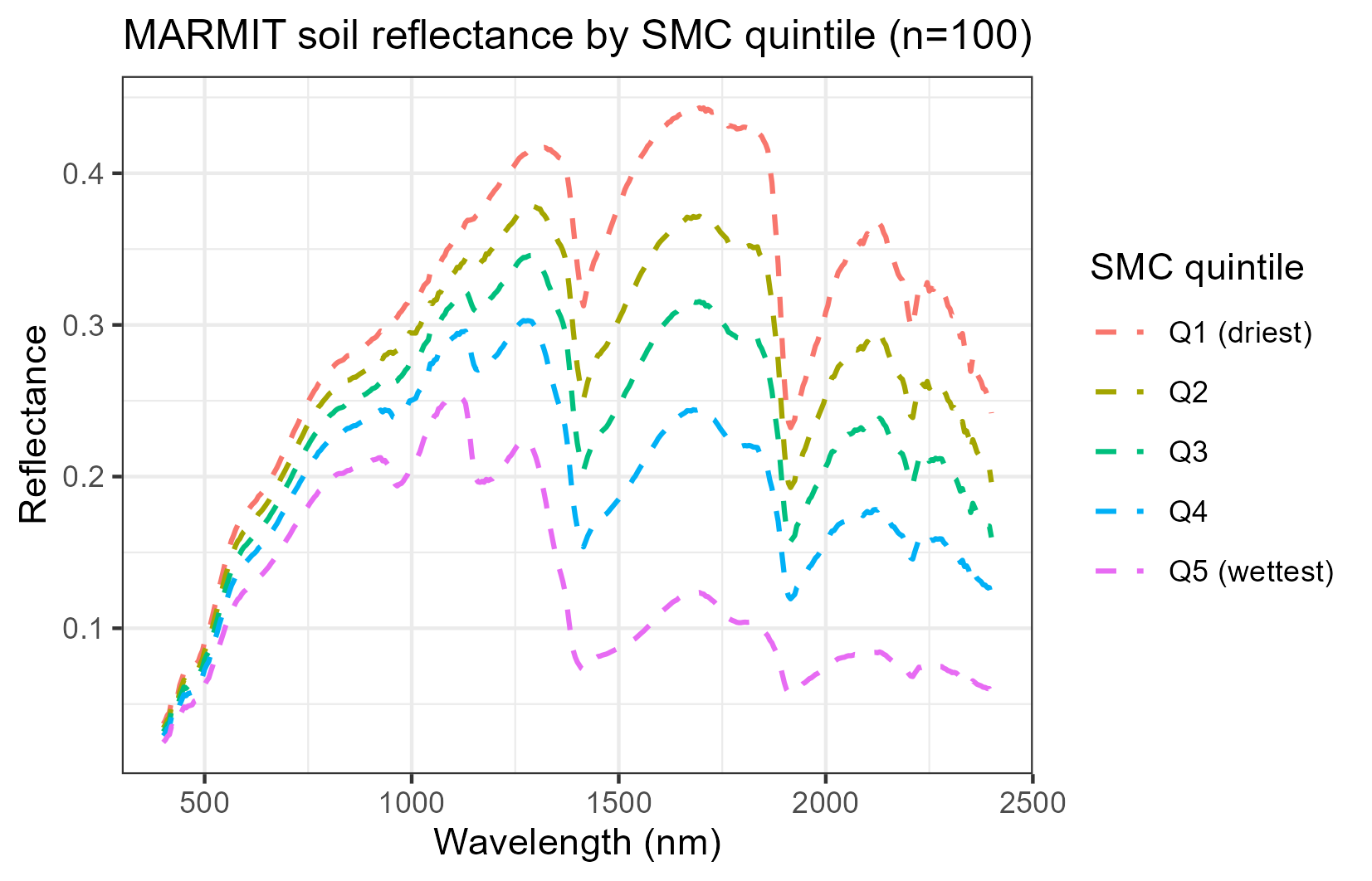

Textbook-correct: reflectance darkens monotonically with increasing soil moisture, with deepening water-absorption dips (~1450nm/1950nm) for the wettest quintile.

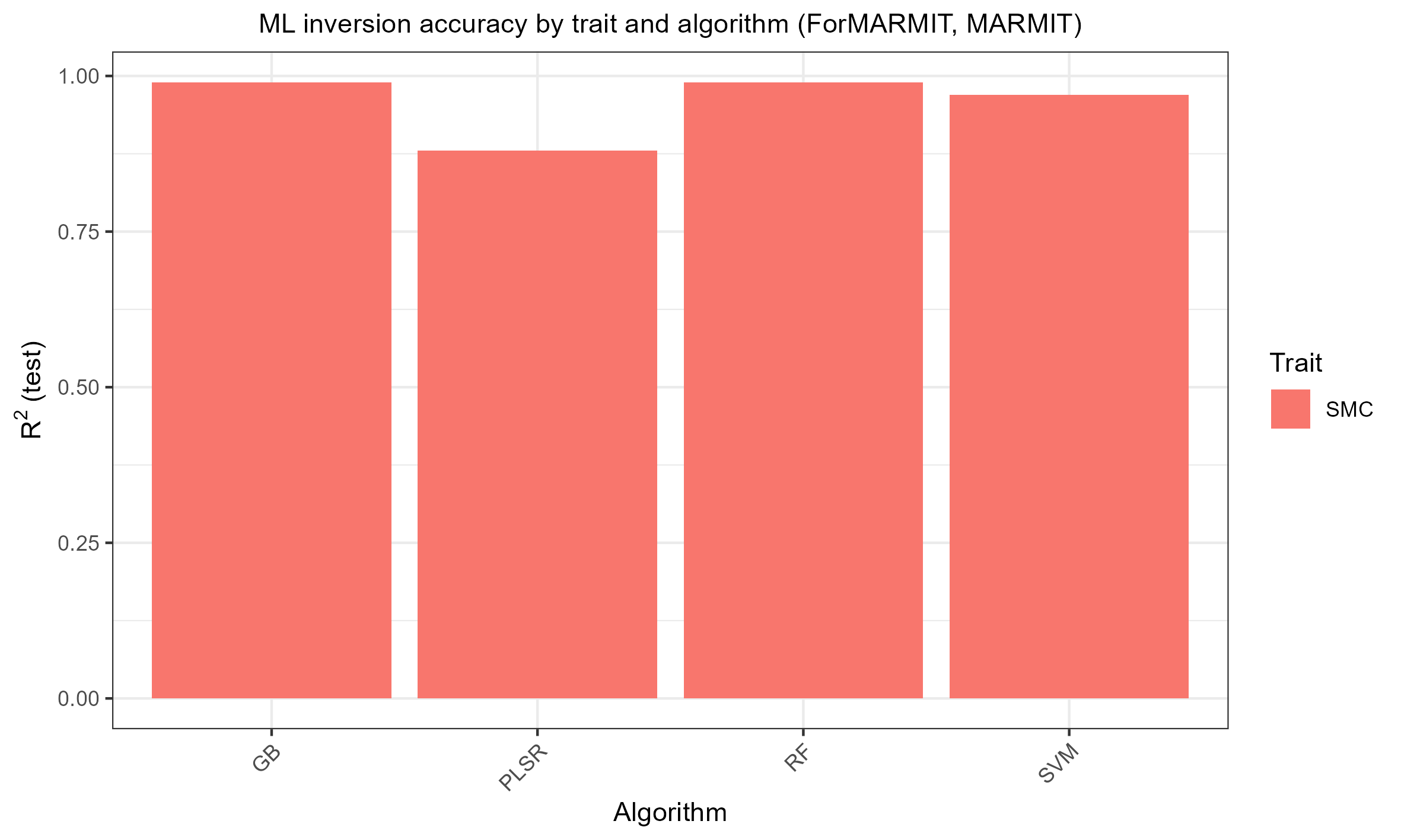

SMC inverts almost perfectly (R²=0.88-0.99) – unsurprising, since MARMIT’s reflectance response to moisture is close to deterministic physics, not a noisy proxy relationship the way trait retrieval from canopy reflectance usually is.
