SCOPE course pipeline: energy balance, fluorescence, and trait inversion • SCOPEinR

Scripts/R/ForSCOPE/ is the SCOPEinR counterpart to ToolsRTM’s ForPROSAIL course pipeline (see that package’s course-pipeline article for the general pattern) – with one addition: SCOPE runs the full Soil-Canopy-Observation, Photochemistry and Energy-balance model, so it also produces chlorophyll fluorescence (SIF) and can target Vcmax25 (maximum carboxylation rate), not just leaf/canopy optical traits.

if (!requireNamespace("ToolsRTM", quietly = TRUE)) remotes::install_gitlab("caminoccg/toolsrtm")
if (!requireNamespace("SCOPEinR", quietly = TRUE)) remotes::install_gitlab("caminoccg/scopeinr")
library(ToolsRTM); library(SCOPEinR)
source("Scripts/R/ForSCOPE/3-simulate_LUT.R")   # ~100 SCOPE runs, several minutes
source("Scripts/R/ForSCOPE/4-inversion_ML.R")   # Cab/LAI/EWT/Vcmax25 x 11 algorithms + a SIF experiment
source("Scripts/R/ForSCOPE/5-inversion_DL.R")

Unlike the optical-only models, get.SCOPE()’s leaf.model/canopy.model arguments are not functional – SCOPE always runs its own integral multi-layer Fluspect-Cx + RTMo (verified directly in Scripts/R/Comparison/compare_SCOPE_models.R, not just documented). There is one leaf/canopy configuration, not a choice to expose here.

1. Simulate

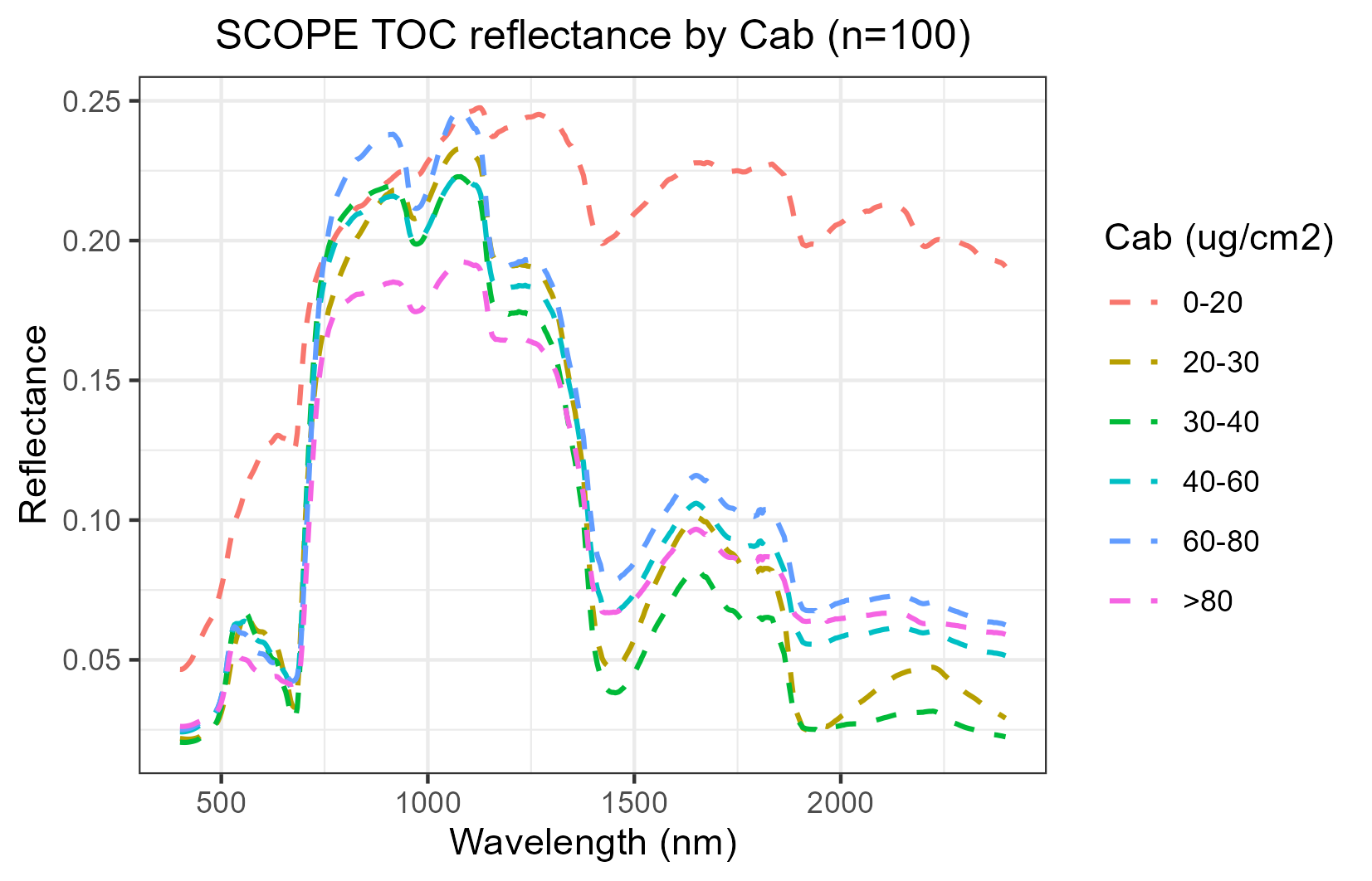

Same shape as the ToolsRTM course scripts: build a LUT via getLUT.SCOPE(), run get.SCOPE() row-by-row (wrapped in tryCatch – one row with an extreme random parameter combination can otherwise crash the whole batch with no R-level error, a native/numerical fault rather than a catchable stop()), convolve to sensors, compute indices, save diagnostics.

2. Solar-induced fluorescence (SIF)

calc_fluorescence=1 is on by default in setoptions.csv, so every SCOPE run already computes fluorescence radiance (data.rad$LoF_, over data.spectral$wlF, roughly 640-850nm). 3-simulate_LUT.R extracts the two classic single-band SIF metrics, SIF687 and SIF760, as extra LUT columns.

wlF <- sims[[1]]$data.spectral$wlF
i687 <- which.min(abs(wlF - 687)); i760 <- which.min(abs(wlF - 760))
LUT$SIF687 <- sapply(sims, function(s) s$data.rad$LoF_[i687])
LUT$SIF760 <- sapply(sims, function(s) s$data.rad$LoF_[i760])

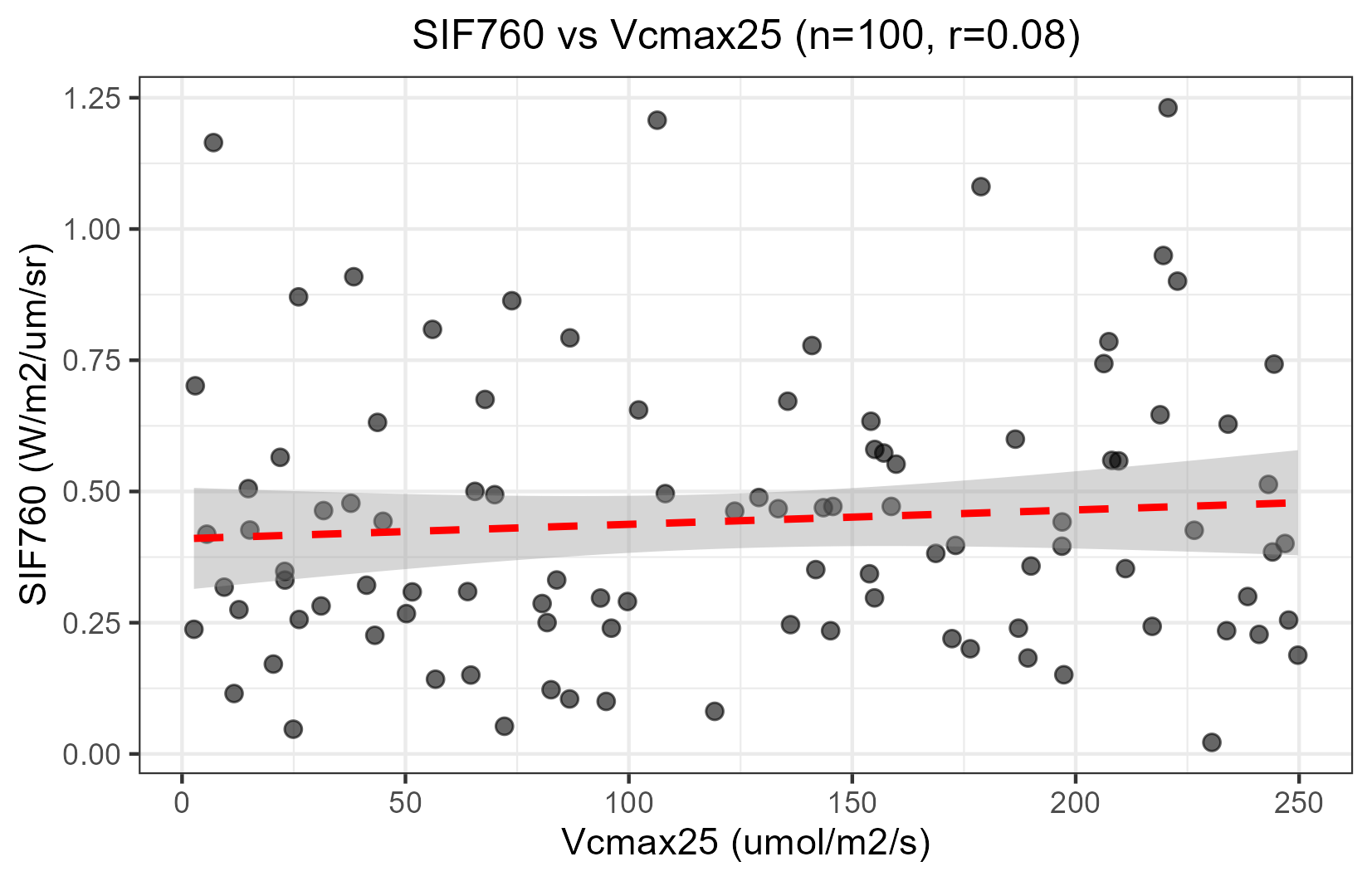

3. Does SIF predict Vcmax25? A real experiment, not just a discussion

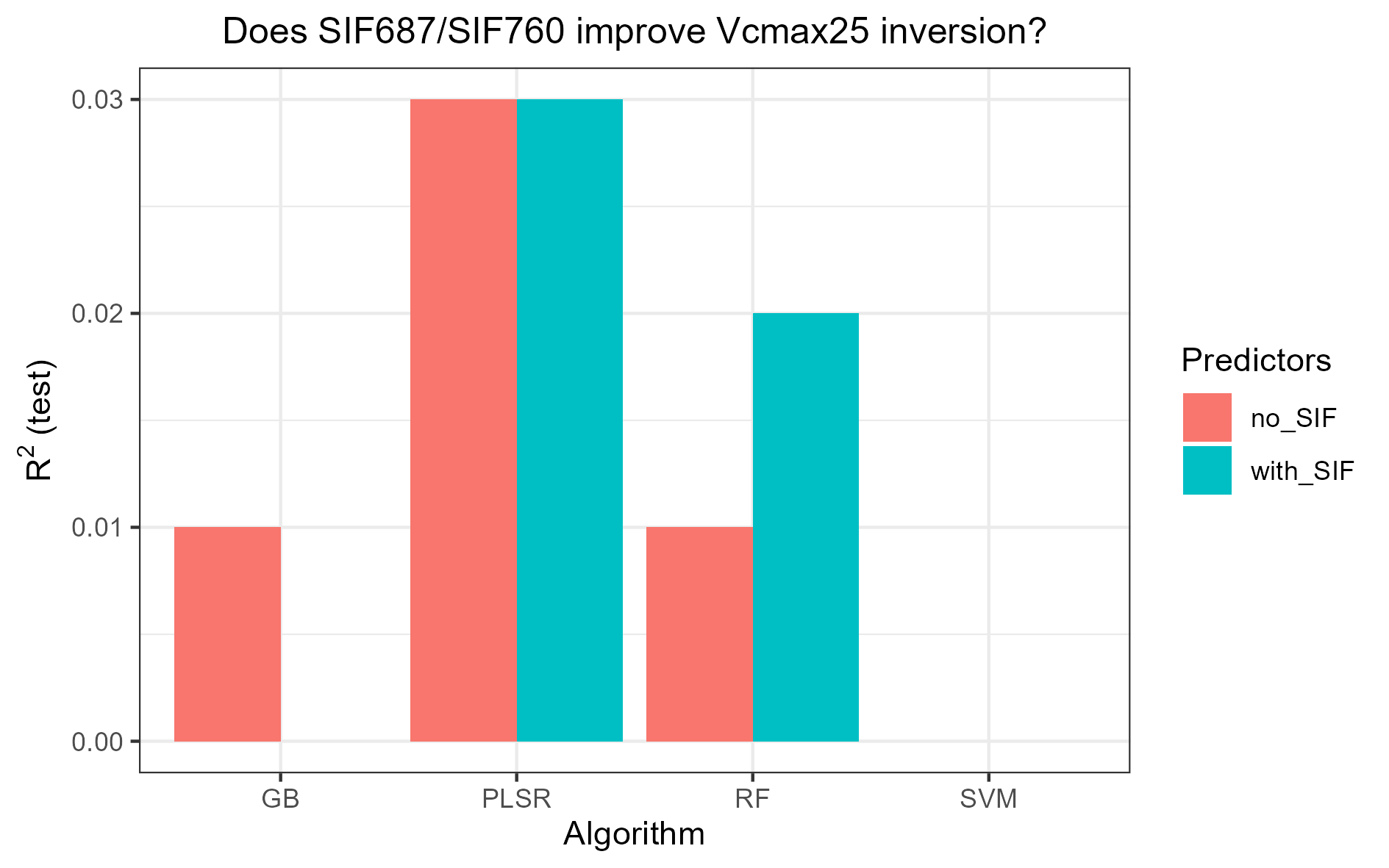

Photosynthetic electron transport is directly linked to fluorescence emission – in principle, SIF should carry information about photosynthetic capacity (Vcmax25) beyond what reflectance alone captures. 4-inversion_ML.R tests this directly: it inverts Vcmax25 twice, once from reflectance+indices alone and once with SIF687/SIF760 added, across 4 algorithms.

Honest result: no. R² stays at 0.00-0.03 whether or not SIF is included. Worth understanding why, since it’s not that “SIF doesn’t work” –

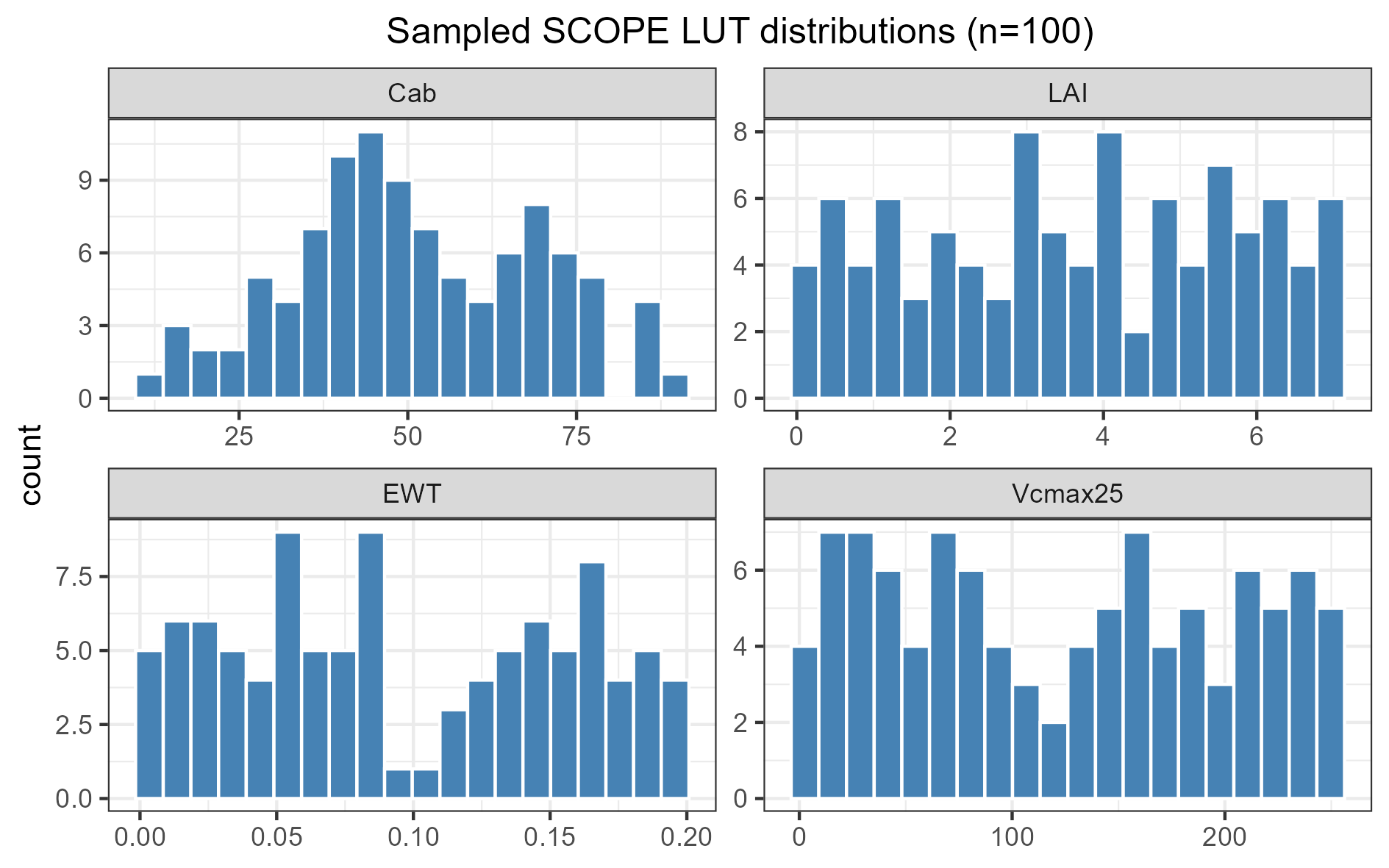

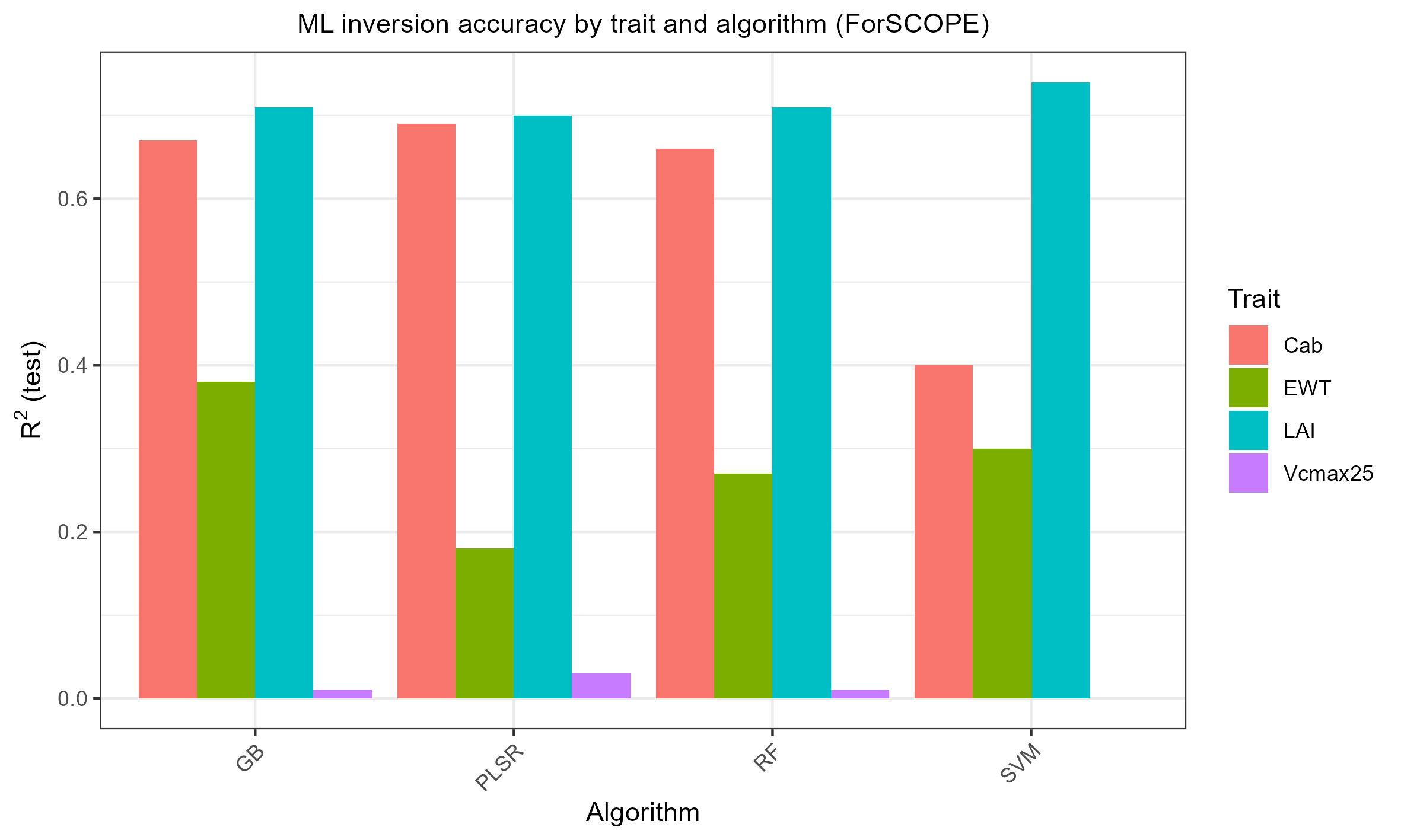

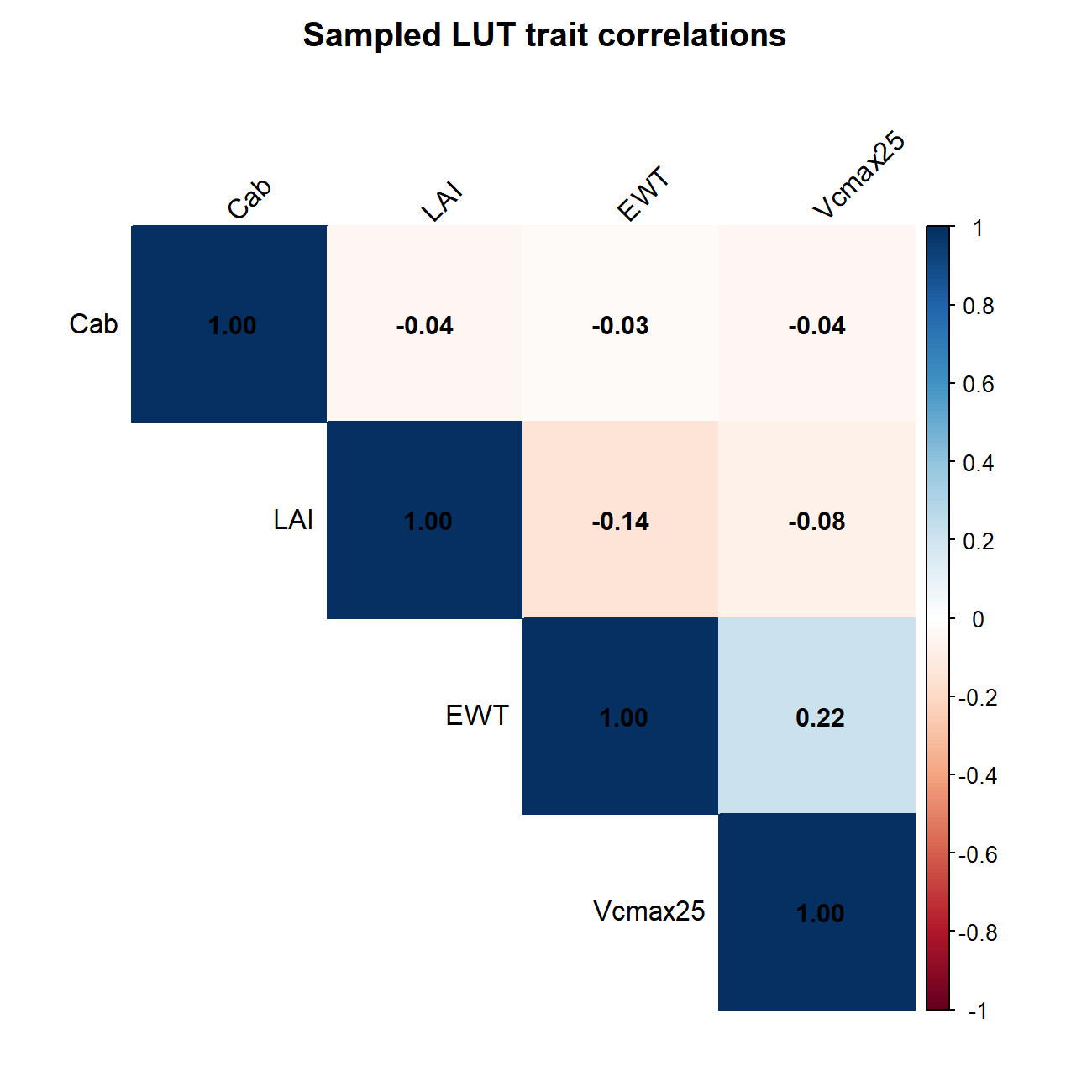

Cab and LAI invert reasonably (R²=0.66-0.74), EWT modestly (0.18-0.38), but Vcmax25 is barely predictable from anything here, SIF included. The root cause: getLUT.SCOPE() samples Vcmax25 fully independently of Cab/leaf nitrogen/everything else. In real leaves, Vcmax correlates with nitrogen and chlorophyll content – and that correlation is exactly what real SIF-Vcmax remote-sensing studies rely on as their proxy signal. Sampled at random here, there’s no such signal for any method, SIF or otherwise, to find. If you want a fair test of the SIF-Vcmax hypothesis, correlate Vcmax25 with Cab first (the same correlatedValue() mechanism ForPROSAIL uses for Car~Cab) before re-running this comparison.

4. Energy balance convergence

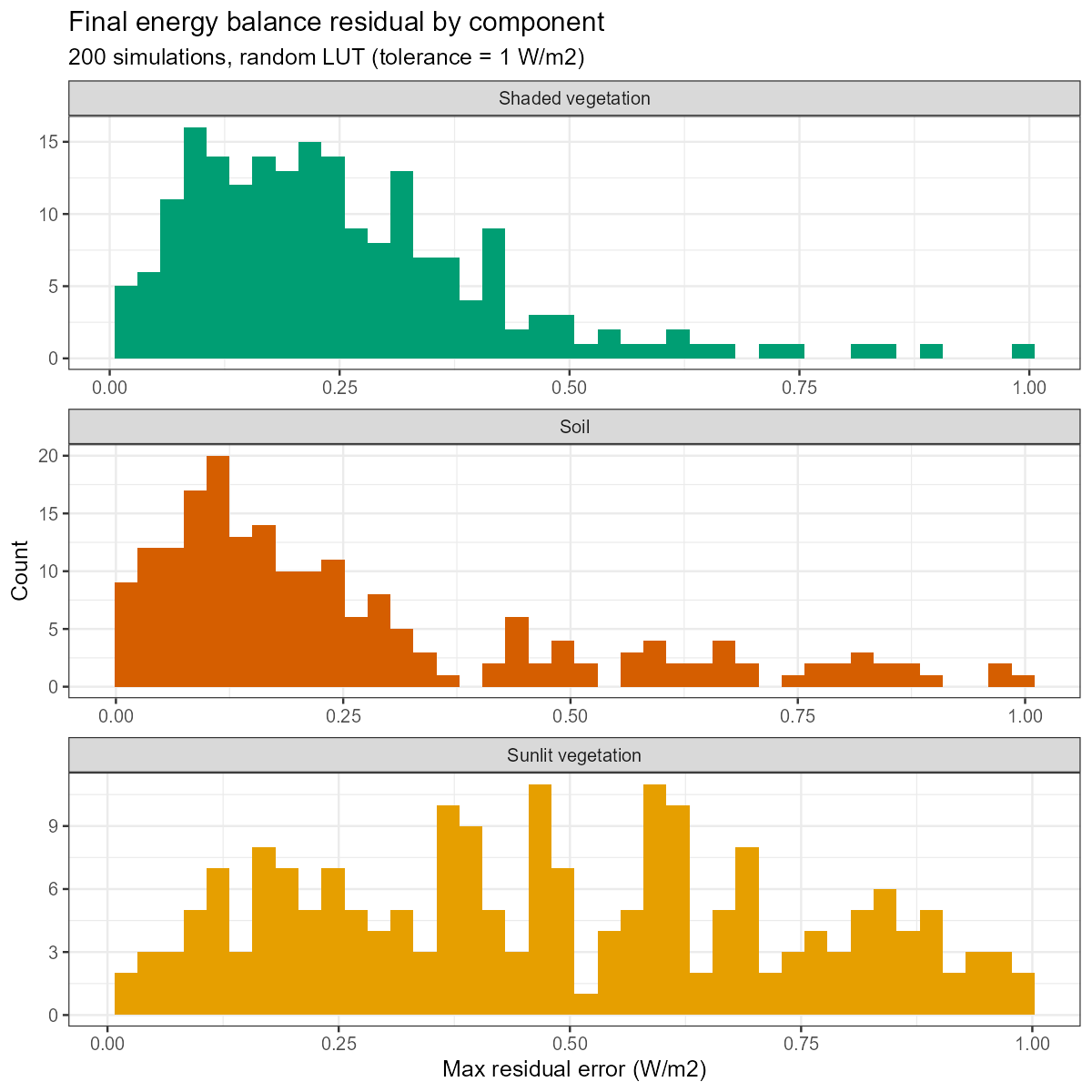

Scripts/R/ForSCOPE/6-validate_ebal_convergence.R runs many randomized SCOPE simulations and records how many iterations the energy-balance solver took to converge, and the residual error per component (sunlit vegetation, shaded vegetation, soil) – a numerical-stability check, not a trait-retrieval one.

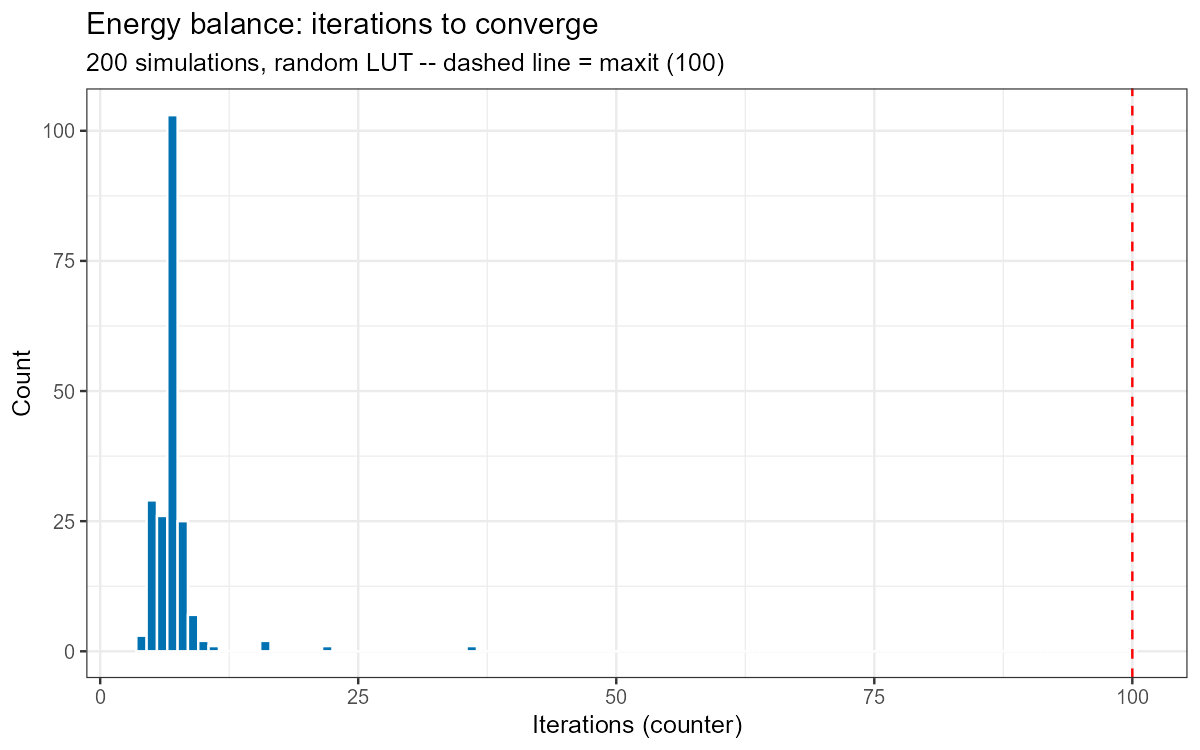

200/200 simulations converged (100%), median 7 iterations, residuals well under 1 W/m² for every component.

Where to go next

ToolsRTM’s course-pipeline article for the optical-only models (fourSAIL, foursail2, INFORM, SPART, MARMIT) this pipeline mirrors.
Scripts/R/ForSCOPE/1-getSCOPE.R, 1-getSCOPE-v3_withChunck.R, 2-Explore_outputsSCOPE.R – lower-level teaching scripts covering get.SCOPE()/get.SCOPE.parallel() directly, and how to explore SCOPE’s own multi-part output structure (data.rad, data.fluxes, data.canopy, etc).
